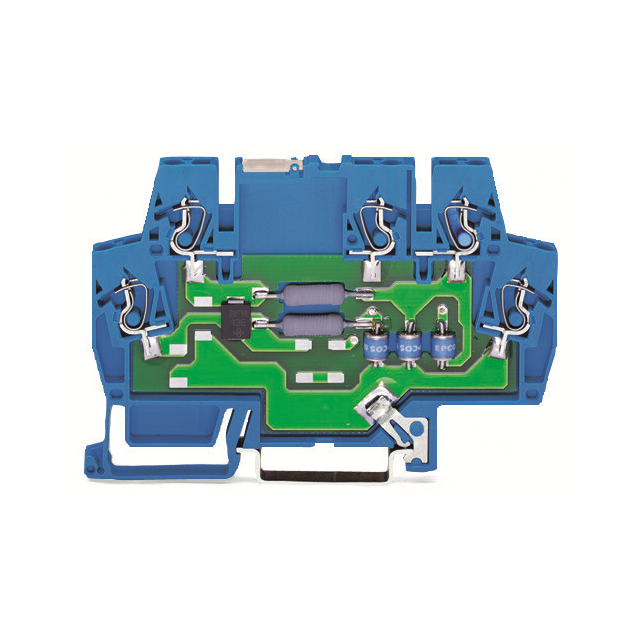

Specification	792-803

Approval Agency	ATEX
Current - Discharge (Max)	10 kA
Current - Discharge (Nom)	5 kA
Form	Module Only
Mounting Type	DIN Rail
Number of Poles	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Voltage - Continuous Operating (Max) (MCOV) AC	23 VAC
Voltage - Continuous Operating (Max) (MCOV) DC	33 VDC
Voltage - Protection Level (VP) (2416)	50 V

792 Series

Part	Number of Poles	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Continuous Operating (Max) (MCOV) AC	Voltage - Continuous Operating (Max) (MCOV) DC	Current - Discharge (Nom)	Current - Discharge (Max)	Voltage - Protection Level (VP) (2416)	Form	Mounting Type
WAGO Corporation 792-805	1	EAC	80 °C	-40 °C	4.2 VAC	6 VDC	5 kA	10 kA	27 V	Module Only	DIN Rail
WAGO Corporation 792-803	1	ATEX	80 °C	-40 °C	23 VAC	33 VDC	5 kA	10 kA	50 V	Module Only	DIN Rail
WAGO Corporation 792-801	1	EAC	80 °C	-40 °C	23 VAC	33 VDC	5 kA	10 kA	50 V	Module Only	DIN Rail
WAGO Corporation 792-802	1	EAC	80 °C	-40 °C	23 VAC	33 VDC	300 A	5 kA	50 V	Module Only	DIN Rail
WAGO Corporation 792-800	1	EAC	80 °C	-40 °C	23 VAC	33 VDC	5 kA	10 kA	110 V	Module Only	DIN Rail
WAGO Corporation 792-804	1	EAC	80 °C	-40 °C	38.5 VAC	55 VDC	5 kA	10 kA	100 V	Module Only	DIN Rail
