Q-2G03F000H018i

Active

Amphenol Custom Cable

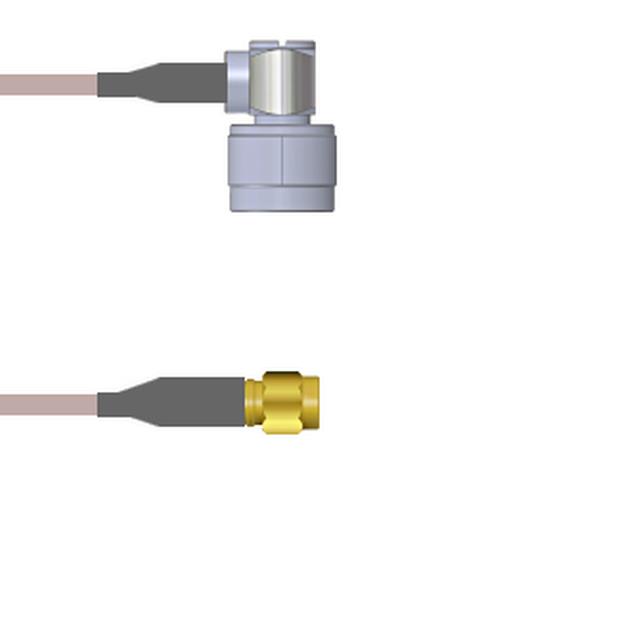

CBL ASSY SMA-NTYPE PLUG-PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2G03F000H018i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2G03F000H018i

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2G03F0 Series

Part	Frequency - Max [Max]	Overall Impedance	Cable Type	2nd Connector Mounting Type	Features	Length	Length	Length	1st Connector	2nd Contact Gender	Style	2nd Connector	1st Connector Mounting Type	Color	1st Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2G03F000H003M	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded	3 m	118.1 in	9.8 '	SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male
Amphenol Custom Cable Q-2G03F000H018i	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded				SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2G03F000H048i	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded	1200 mm	48 in	4 ft	SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male
Amphenol Custom Cable Q-2G03F000H.25M	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded				SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male		250 mm	9.843 "
Amphenol Custom Cable Q-2G03F000H108i	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded	2.7 m	108 in	9 ft	SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male
Amphenol Custom Cable Q-2G03F000H0.5M	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded	50 cm	19.69 "		SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male
Amphenol Custom Cable Q-2G03F000H012i	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded	304.8 mm	12 "		SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male
Amphenol Custom Cable Q-2G03F000H1.5M	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded	1.5 m	59.1 in	4.9 ft	SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male
Amphenol Custom Cable Q-2G03F000H009i	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded	228.6 mm	9 "		SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male
Amphenol Custom Cable Q-2G03F000H006i	11 GHz	50 Ohms	RG-142	Free Hanging (In-Line)	Shielded	152.4 mm	6 in		SMA Plug	Male	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 97.22
		25	$ 95.33
		50	$ 93.44
		100	$ 91.55
		250	$ 89.66

Description

General part information

Q-2G03F0 Series

Cable Assembly Coaxial SMA to N-Type RG-142 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
