630W13W3240-1NB

Active

EDAC Inc.

CONN D-SUB RCPT 13POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630W13W3240-1NB

Active

EDAC Inc.

CONN D-SUB RCPT 13POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630W13W3240-1NB

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

630W13 Series

Part	Contact Material	Flange Feature	Termination	Current Rating (Amps)	Shell Material, Finish	Number of Rows	Connector Type	Features	Ingress Protection	Number of Positions [custom]	Number of Positions [custom]	Contact Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Dielectric Material	Material Flammability Rating	Connector Style	Color	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 630W13W3640-4N4	Copper Alloy	Housing/Shell (4-40)	Solder	5 A 40 A	Nickel Plated Steel	2	Receptacle Female Sockets	Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole
EDAC Inc. 630W13W3340-1N4	Copper Alloy	Housing/Shell (4-40)	Solder		Nickel Plated Steel	2	Receptacle Female Sockets	Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black	0.38 µm	15 µin	Panel Mount Right Angle Through Hole	10A 5A
EDAC Inc. 630W13W3640-2NC	Copper Alloy	Housing/Shell (M3)	Solder	5 A 20 A	Nickel Plated Steel	2	Receptacle Female Sockets	Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black	0.76 Ám	30 Áin	Through Hole Right Angle
EDAC Inc. 630W13W3240-2NC	Copper Alloy	Housing/Shell (M3)	Solder	5 A 20 A	Nickel Plated Steel	2	Receptacle Female Sockets	Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black			Through Hole Right Angle		Flash
EDAC Inc. 630W13W3140-4NA	Copper Alloy	Housing/Shell (M3)	Solder	5 A 40 A	Nickel Plated Steel	2	Receptacle Female Sockets	Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black	0.127 µm	5 µin	Panel Mount Right Angle Through Hole
EDAC Inc. 630W13W3340-2NC	Copper Alloy	Housing/Shell (M3)	Solder	5 A 20 A	Nickel Plated Steel	2	Receptacle Female Sockets	Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black	0.38 µm	15 µin	Through Hole Right Angle
EDAC Inc. 630W13W3240-1NB	Copper Alloy	Housing/Shell (M3)	Solder		Nickel Plated Steel	2	Receptacle Female Sockets	Board Lock Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black			Panel Mount Right Angle Through Hole	10A 5A	Flash
EDAC Inc. 630W13W3640-2NB	Copper Alloy	Housing/Shell (M3)	Solder	5 A 20 A	Nickel Plated Steel	2	Receptacle Female Sockets	Board Lock Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole
EDAC Inc. 630W13W3340-1NC	Copper Alloy	Housing/Shell (M3)	Solder		Nickel Plated Steel	2	Receptacle Female Sockets	Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black	0.38 µm	15 µin	Through Hole Right Angle	10A 5A
EDAC Inc. 630W13W3640-1NC	Copper Alloy	Housing/Shell (M3)	Solder		Nickel Plated Steel	2	Receptacle Female Sockets	Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	10	3	Signal and Power	125 VDC	-55 °C	125 °C	Gold	13C3 13W3 B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Combo D-Sub	Black	0.76 Ám	30 Áin	Through Hole Right Angle	10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 17.03

Description

General part information

630W13 Series

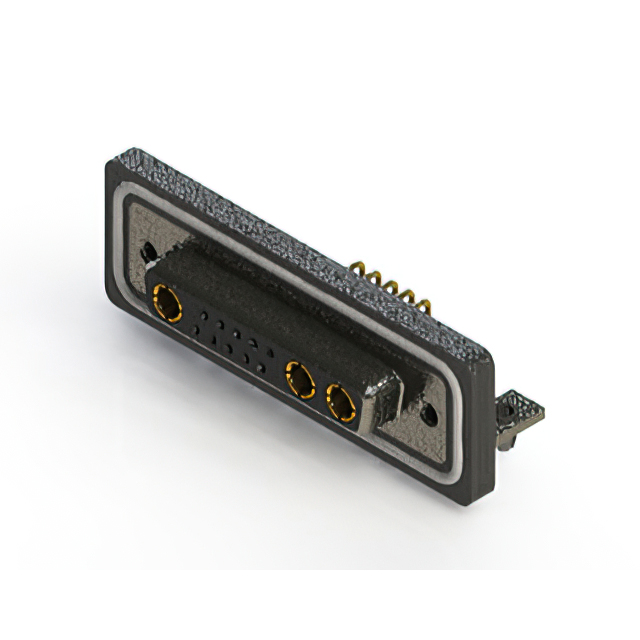

13 (10 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
