Specification	19353 010250

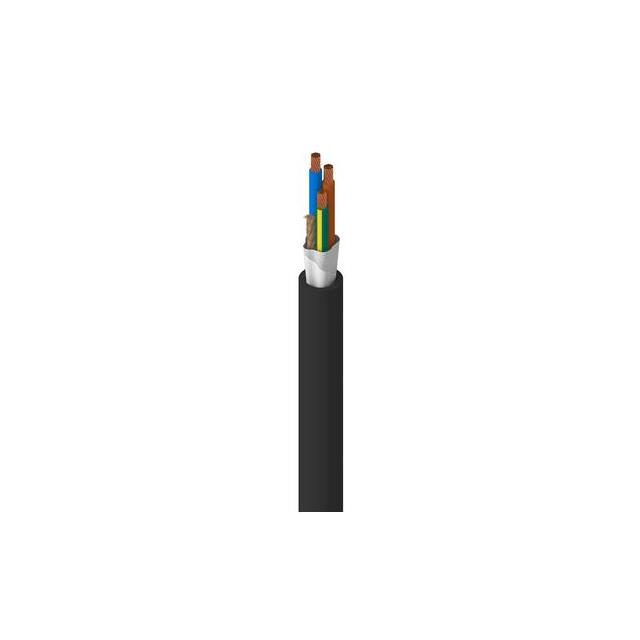

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand Count	65
Conductor Strand Gauge	34 AWG
Jacket (Insulation) Diameter	0.353 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.036 in
Jacket Color	Black
Length	250 ft
Number of Conductors	3
Ratings	Style, UL, SJT
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	16 AWG

19353 Series

Part	Number of Conductors	Jacket Color	Jacket (Insulation) Diameter	Usage	Conductor Strand Count	Conductor Strand Gauge	Wire Gauge	Length	Jacket (Insulation) Thickness	Ratings	Jacket (Insulation) Material	Conductor Material	Conductor Insulation	Voltage	Cable Type
Belden Inc. 19353 010250	3	Black	0.353 in	Cord and Cordset	65	34 AWG	16 AWG	250 ft	0.036 in	SJT Style UL	Poly-Vinyl Chloride (PVC)	Bare Copper	Poly-Vinyl Chloride (PVC)	300 V	Conductor Multi
