RN216-1-02-10M

Active

TE Connectivity Raychem Cable Protection

CMC 10MH 1A 2LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RN216-1-02-10M

Active

TE Connectivity Raychem Cable Protection

CMC 10MH 1A 2LN TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RN216-1-02-10M

Approval Agency	ENEC, UR, VDE
Current Rating (Max) [Max]	1 A
DC Resistance (DCR) (Max)	210 mOhm
Filter Type	Power Line
Height (Max) [Max] [z]	0.996 in
Height (Max) [Max] [z]	25.3 mm
Inductance @ Frequency	10 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	0.906 in
Size / Dimension [x]	23 mm
Size / Dimension [y]	0.61 in
Size / Dimension [y]	15.5 mm
Voltage Rating - AC	300 V

RN216 Series

Part	Approval Agency	Mounting Type	Filter Type	Number of Lines	DC Resistance (DCR) (Max)	Inductance @ Frequency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - AC	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Height (Max) [Max] [z]	Height (Max) [Max] [z]
TE Connectivity Raychem Cable Protection RN216-0.5-02-47M	ENEC UR VDE	Through Hole	Power Line	2	960 mOhm	10 kHz 47 mH	0.61 in	15.5 mm	0.906 in	23 mm	300 V	500 mA	100 °C	-40 °C	4 Lead	Vertical	0.996 in	25.3 mm
TE Connectivity Raychem Cable Protection RN216-1-02-10M	ENEC UR VDE	Through Hole	Power Line	2	210 mOhm	10 mH	0.61 in	15.5 mm	0.906 in	23 mm	300 V	1 A	100 °C	-40 °C	4 Lead	Vertical	0.996 in	25.3 mm
TE Connectivity Raychem Cable Protection RN216-1-02-15M	ENEC UR VDE	Through Hole	Power Line	2	260 mOhm	10 kHz 15 mH	0.61 in	15.5 mm	0.906 in	23 mm	300 V	1 A	100 °C	-40 °C	4 Lead	Vertical	0.996 in	25.3 mm
TE Connectivity Raychem Cable Protection RN216-2-02-3M3	ENEC UR VDE	Through Hole	Power Line	2	70 mOhm	3.3 mH	0.61 in	15.5 mm	0.906 in	23 mm	300 V	2 A	100 °C	-40 °C	4 Lead	Vertical	0.996 in	25.3 mm
TE Connectivity Raychem Cable Protection RN216-0.5-02-27M	ENEC UR VDE	Through Hole	Power Line	2	790 mOhm	27 mH	0.61 in	15.5 mm	0.906 in	23 mm	300 V	500 mA	100 °C	-40 °C	4 Lead	Vertical	0.996 in	25.3 mm
TE Connectivity Raychem Cable Protection RN216-1.3-02-6M8	ENEC UR VDE	Through Hole	Power Line	2	140 mOhm	6.8 mH 10 kHz	0.61 in	15.5 mm	0.906 in	23 mm	300 V	1.3 A	100 °C	-40 °C	4 Lead	Vertical	0.996 in	25.3 mm
TE Connectivity Raychem Cable Protection RN216-0.8-02-27M	ENEC UR VDE	Through Hole	Power Line	2	370 mOhm	27 mH	0.61 in	15.5 mm	0.906 in	23 mm	300 V	800 mA	100 °C	-40 °C	4 Lead	Vertical	0.996 in	25.3 mm
TE Connectivity Raychem Cable Protection RN216-2-02-2M2	ENEC UR VDE	Through Hole	Power Line	2	66 mOhm	2.2 mH	0.61 in	15.5 mm	0.906 in	23 mm	300 V	2 A	100 °C	-40 °C	4 Lead	Vertical	0.996 in	25.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.56
		10	$ 1.21
		25	$ 1.10
		50	$ 1.02
		100	$ 0.95

Description

General part information

RN216 Series

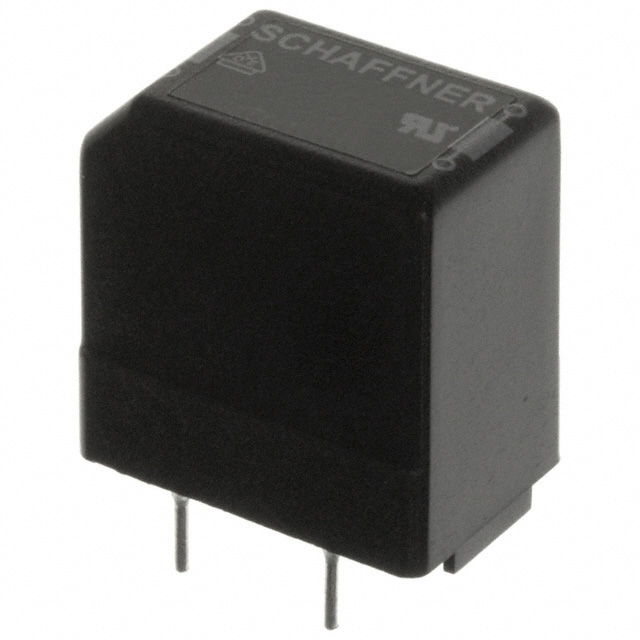

10 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 210mOhm (Typ)
