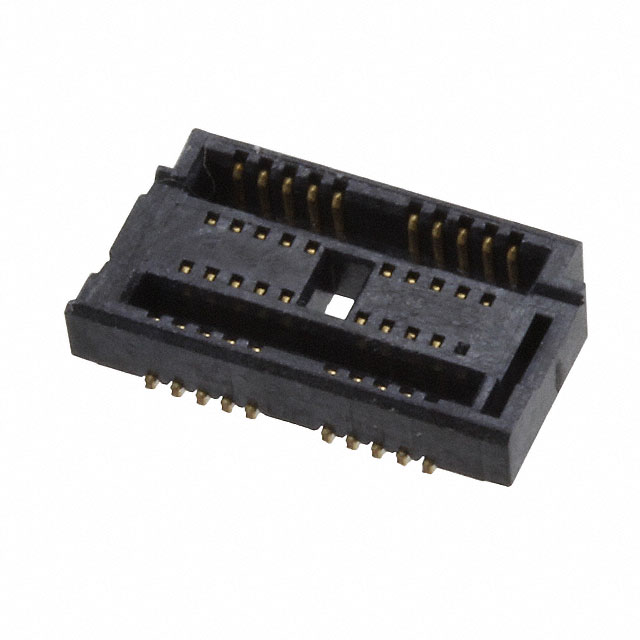

LTH-010-01-G-D-A

Active

Samtec Inc.

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	LTH-010-01-G-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	0.066 in
Height Above Board	1.68 mm
Mated Stacking Heights	2.31 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Contact Finish	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Mated Stacking Heights	Height Above Board	Height Above Board	Features	Pitch [x]	Pitch [x]
Samtec Inc. LTH-010-01-G-D-A	Header Outer Shroud Contacts	Gold	2	20	10 Áin	0.25 Ám	Surface Mount	2.31 mm	0.066 in	1.68 mm	Board Guide	0.5 mm	0.02 in
Samtec Inc. LTH-010-01-G-D-A-TR	Header Outer Shroud Contacts	Gold	2	20	10 Áin	0.25 Ám	Surface Mount	2.31 mm	0.066 in	1.68 mm	Board Guide	0.5 mm	0.02 in
Samtec Inc. LTH-010-01-H-D-A	Header Outer Shroud Contacts	Gold	2	20	30 Áin	0.76 Ám	Surface Mount	2.31 mm	0.066 in	1.68 mm	Board Guide	0.5 mm	0.02 in
Samtec Inc. LTH-010-01-G-D-A-K-TR	Header Outer Shroud Contacts	Gold	2	20	10 Áin	0.25 Ám	Surface Mount	2.31 mm	0.066 in	1.68 mm	Board Guide Pick and Place	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
