V7-6B19D8-057

Active

Honeywell Sensing and Productivity Solutions

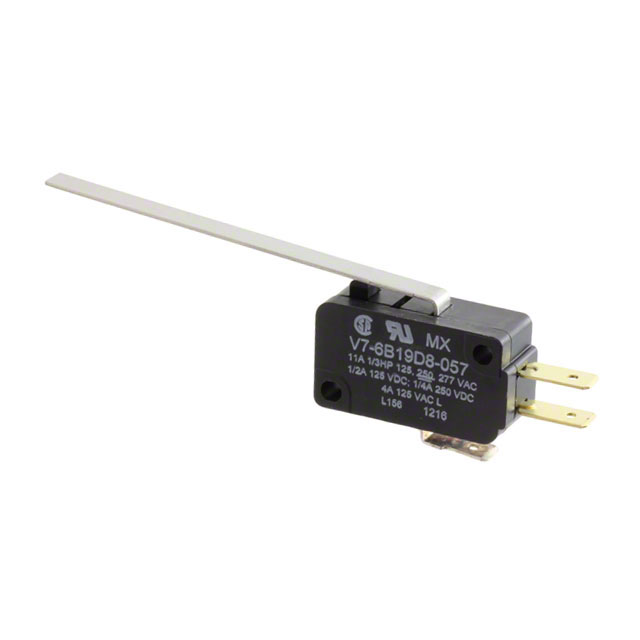

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV7 Series Basic Switches Catalog Datasheet

V7-6B19D8-057

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

DocumentsV7 Series Basic Switches Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.46
		10	$ 6.18
		25	$ 5.74
		50	$ 5.42
		100	$ 5.12
		250	$ 4.75
		500	$ 4.49
		1000	$ 4.26

Description

General part information

V7-6 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

V7 Series Basic Switches Catalog

Datasheet

Specification	V7-6B19D8-057	V7-6 Series

	-	-
Actuator Type	Lever, Straight	Lever, Straight, Round (Pin Plunger)
Circuit	SPDT	SPST-NO, SPDT
Current Rating (Amps)	11 A, 500 mA	11 - 500 mA
Differential Travel	2.54 mm	0.4 - 2.54 mm
Differential Travel	0.1 in	0.016 - 0.1 in
Electrical Life	100000 Cycles	100000 Cycles
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	55 gf	55 - 146 gf
Operating Force	-	397 gf
Operating Force	-	170 gf
Operating Position	-	14.7 - 15.3 mm
Operating Position	-	0.579 - 0.602 "
Operating Position [custom]	0.571 in	0.571 in
Operating Position [custom]	14.5 mm	14.5 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.146 "	0.04 - 0.146 in
Overtravel	3.7 mm	1 - 3.7 mm
Overtravel	-	0.077 in
Overtravel	-	1.96 mm
Pretravel	0.3 in	0.047 - 0.3 in
Pretravel	7.6 mm	1.2 - 7.6 mm
Release Force	3 gf	3 - 113 gf
Switch Function	On-Mom	Off-Mom, On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	125 VDC	125 VDC

Part	Circuit	Mechanical Life	Operating Force	Switch Function	Voltage Rating - AC	Actuator Type	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel [x]	Overtravel [x]	Electrical Life	Differential Travel	Differential Travel	Operating Position	Operating Position	Pretravel	Pretravel	Release Force	Operating Force [Max]	Operating Force [Min]	Overtravel	Overtravel	Operating Position [custom]	Operating Position [custom]
Honeywell Sensing and Productivity Solutions V7-6C27D8-022	SPST-NO	10000000 Cycles	120 gf	Off-Mom	125 V	Lever, Straight	Quick Connect - 0.187" (4.7mm)	125 VDC	15 A, 500 mA	Chassis Mount	85 °C	-40 °C
Honeywell Sensing and Productivity Solutions V7-6C39D8-002
Honeywell Sensing and Productivity Solutions V7-6C17D8-439	SPDT	10000000 Cycles	146 gf	On-Mom	125 V	Lever, Straight	Quick Connect - 0.187" (4.7mm)	125 VDC	15 A, 500 mA	Chassis Mount	85 °C	-40 °C	0.077 in	1.96 mm	100000 Cycles	1.1 mm	0.045 in	15.3 mm	0.602 "	0.2 in	5.1 mm	24 gf
Honeywell Sensing and Productivity Solutions V7-6C17P01-263-1
Honeywell Sensing and Productivity Solutions V7-6B19D8	SPDT	10000000 Cycles		On-Mom	125 V	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	125 VDC	11 A, 500 mA	Chassis Mount	85 °C	-40 °C			100000 Cycles	0.4 mm	0.016 "	14.7 mm	0.579 in	0.047 in	1.2 mm	113 gf	397 gf	170 gf	0.04 in	1 mm
Honeywell Sensing and Productivity Solutions V7-6B19D8-057	SPDT	10000000 Cycles	55 gf	On-Mom	125 V	Lever, Straight	Quick Connect - 0.187" (4.7mm)	125 VDC	11 A, 500 mA	Chassis Mount	85 °C	-40 °C			100000 Cycles	2.54 mm	0.1 in			0.3 in	7.6 mm	3 gf			0.146 "	3.7 mm	0.571 in	14.5 mm
