Technical Specifications
Parameters and characteristics for this part
| Specification | 6000FE 8771000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 25 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.6 mm |
| Jacket (Insulation) Diameter [diameter] | 0.26 in |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Ratings | UL Style CL2P |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Sound, Security |
| Voltage | 150 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.57 | |
Description
General part information
6000FE Series

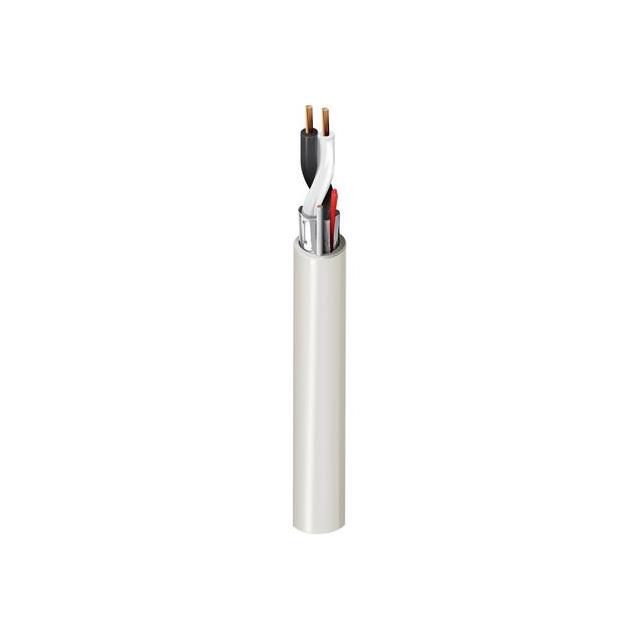

2 Conductor Multi-Conductor Cable Natural 12 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
