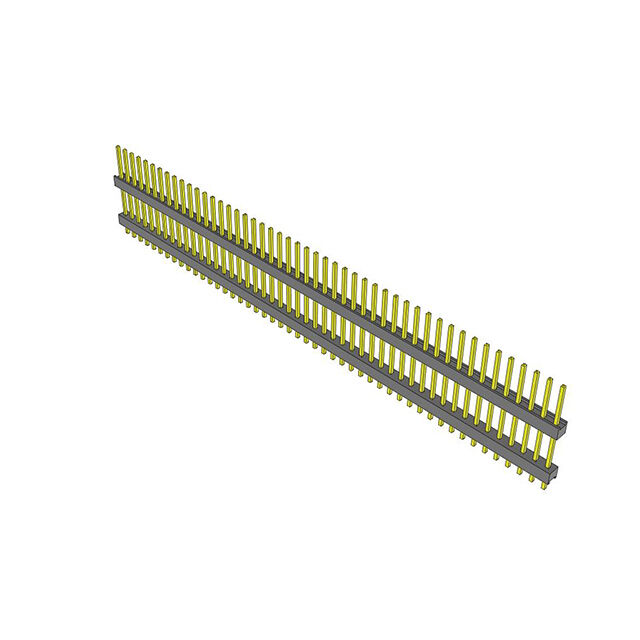

DW-48-11-T-S-510
ActiveSamtec Inc.
CONN HDR 48POS 0.1 STACK T/H TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DW-48-11-T-S-510
ActiveSamtec Inc.
CONN HDR 48POS 0.1 STACK T/H TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DW-48-11-T-S-510 |
|---|---|
| Color | Black |
| Contact Finish - Post (Mating) | Tin |
| Length - Overall Pin [x] | 0.93 in |
| Length - Overall Pin [x] | 23.622 mm |
| Length - Post (Mating) [x] | 7.874 mm |
| Length - Post (Mating) [x] | 0.31 in |
| Length - Stack Height [x] | 0.51 in |
| Length - Stack Height [x] | 12.954 mm |
| Length - Tail [x] | 0.11 in |
| Length - Tail [x] | 2.794 mm |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.75 | |
Description
General part information
DW-48-11 Series
48 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
