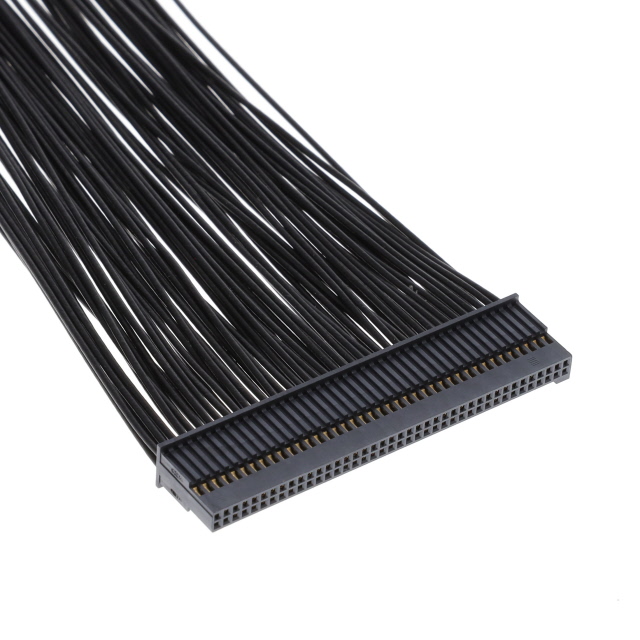

SFSD-40-28-G-05.91-S

Active

Samtec Inc.

.050 SOCKET DISCRETE CABLE ASSEM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFSD Series Other Related Documents 03 SFSD-02-28-G-06.00-D-NDX Datasheet 02 +2

SFSD-40-28-G-05.91-S

Active

Samtec Inc.

.050 SOCKET DISCRETE CABLE ASSEM

Deep-Dive with AI

DocumentsSFSD Series Other Related Documents 03 SFSD-02-28-G-06.00-D-NDX Datasheet 02 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFSD-40-28-G-05.91-S

Cable Termination	Crimp
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length	150 mm
Length	5.91 "
Length	0.492 ft
Number of Positions	80
Number of Rows	2
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

SFSD-40 Series

...

Part	Contact Finish	Pitch - Connector	Pitch - Connector	Shielding	Features	Connector Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Number of Positions	Number of Rows	Color	Length	Length [x]	Length [x]	Contact Finish Thickness	Length [x]
Samtec Inc. SFSD-40-28-G-12.00-DS-NDX	Gold	0.05 in	1.27 mm	Unshielded	Polarizing Key Screw Lock	Socket to Socket	Crimp	10 Áin	0.25 Ám	1 ft	304.8 mm	80	2
Samtec Inc. SFSD-40-28C-H-09.00-DR-NUS	Gold	0.05 in	1.27 mm	Unshielded	Latch Lock Polarizing Key	Socket to Socket	Crimp	30 Áin	0.76 Ám	0.75 ft	228.6 mm	80	2	Individual Multiple	9 in
Samtec Inc. SFSD-40-30-H-31.50-D-NUS	Gold	0.05 in	1.27 mm	Unshielded	Polarizing Key	Socket to Socket	Crimp	30 Áin	0.76 Ám			80	2			2.62 '	800.1 mm
Samtec Inc. SFSD-40-28C-G-12.00-D-NDX	Gold	0.05 in	1.27 mm	Unshielded	Polarizing Key	Socket to Socket	Crimp	10 Áin	0.25 Ám	1 ft	304.8 mm	80	2	Individual Multiple
Samtec Inc. SFSD-40-28-G-05.91-S	Gold	0.05 in	1.27 mm	Unshielded	Polarizing Key	Socket to Individual Wire Leads	Crimp	10 Áin	0.25 Ám	0.492 ft	150 mm	80	2		5.91 "
Samtec Inc. SFSD-40-28-G-40.00-D-NUS	Gold	0.05 in	1.27 mm	Unshielded	Polarizing Key	Socket to Socket	Crimp	10 Áin	0.25 Ám			80	2			3.33 '	1.02 m
Samtec Inc. SFSD-40-28C-F-18.00-SR	Gold	0.05 in	1.27 mm	Unshielded	Latch Lock Polarizing Key	Socket to Individual Wire Leads	Crimp					80	2	Individual Multiple		1.5 ft	457.2 mm	Flash
Samtec Inc. SFSD-40-28-G-03.26-DR-NDX	Gold	0.05 in	1.27 mm	Unshielded	Latch Lock Polarizing Key	Socket to Socket	Crimp	10 Áin	0.25 Ám	0.272 ft	82.8 mm	80	2		3.26 in
Samtec Inc. SFSD-40-28-G-03.75-DS-NDX	Gold	0.05 in	1.27 mm	Unshielded	Flange Polarizing Key	Socket to Socket	Crimp	10 Áin	0.25 Ám	0.313 '	95.25 mm	80	2		3.75 "
Samtec Inc. SFSD-40-30-G-05.00-D-NUS	Gold	0.05 in	1.27 mm	Unshielded	Polarizing Key	Socket to Socket	Crimp	10 Áin	0.25 Ám			80	2			0.417 '	127 mm		5 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.23
		10	$ 15.43

Description

General part information

SFSD-40 Series

80 Position Cable Assembly Rectangular Socket to Individual Wire Leads 0.492' (150.00mm, 5.91")

Documents

Technical documentation and resources

SFSD Series Other Related Documents 03

SFSD-02-28-G-06.00-D-NDX Datasheet 02

Datasheet

.050" Tiger Eye™ Double Row Discrete Wire Cable Assembly, Terminal

Datasheet
