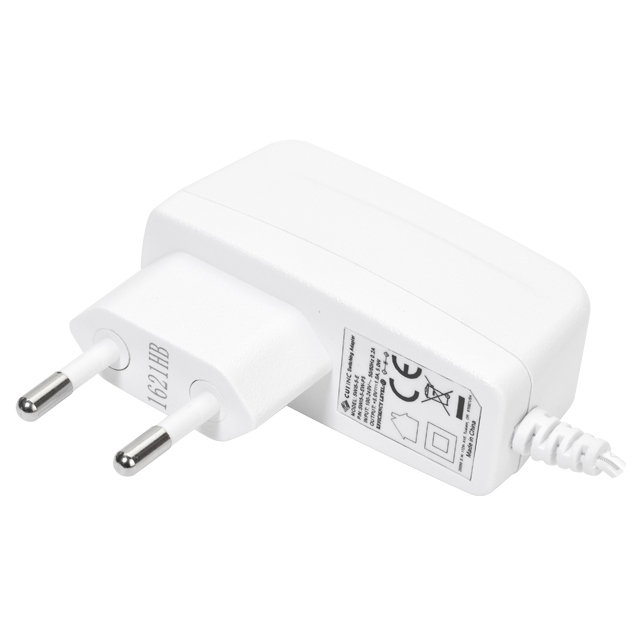

Specification	SWI5-9-EW-P5

Applications	ITE (Commercial)
Approval Agency	CE
Cord Length	59 in
Current - Output (Max)	600 mA
Efficiency	78.35 %
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption	75 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	9.5 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	5.4 W
Region Utilized	Europe
Size / Dimension Height	2.8 in
Size / Dimension Length	2.6 in
Size / Dimension Width	0.98 in
Standard Number	62368-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	9 V

SWI5-E Series

Part	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Polarization	Output Connector O.D.	Output Connector	Output Connector Length	Output Connector I.D.	Applications	Operating Temperature (Max)	Approval Agency	Efficiency	Power (Watts)	Current - Output (Max)	Input Connector	Form	Voltage - Output	Region Utilized	Input Type	Standard Number	No Load Power Consumption	Cord Length	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width
CUI Inc. SWI5-12-EW-P5	90 V	264 V	Positive Center	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	ITE (Commercial)	40 °C	CE	80.9 %	6 W	500 mA	CEE 7/16	Wall Mount (Class II)	12 V	Europe	Fixed Blade	62368-1	75 mW	59 in	2.6 in	2.8 in	0.98 in
CUI Inc. SWI5-5-EW-P6	90 V	264 V	Positive Center	5.5 mm	Barrel Plug	9.5 mm	2.5 mm	ITE (Commercial)	40 °C	CE	74.9 %	5 W	1 A	CEE 7/16	Wall Mount (Class II)	5 VDC	Europe	Fixed Blade	62368-1	75 mW	59 in	2.6 in	2.8 in	0.98 in
CUI Inc. SWI5-5-EW-P5	90 V	264 V	Positive Center	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	ITE (Commercial)	40 °C	CE	74.9 %	5 W	1 A	CEE 7/16	Wall Mount (Class II)	5 VDC	Europe	Fixed Blade	62368-1	75 mW	59 in	2.6 in	2.8 in	0.98 in
CUI Inc. SWI5-9-E-P5	90 V	264 V	Positive Center	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	ITE (Commercial)	40 °C	CE	78.35 %	5.4 W	600 mA	CEE 7/16	Wall Mount (Class II)	9 V	Europe	Fixed Blade	62368-1	75 mW	59 in	2.6 in	2.8 in	0.98 in
CUI Inc. SWI5-5B-E-P5	90 V	264 V	Positive Center	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	ITE (Commercial)	40 °C	CE	75.18 %	6 W	1.2 A	CEE 7/16	Wall Mount (Class II)	5 VDC	Europe	Fixed Blade	62368-1	75 mW	59 in	2.6 in	2.8 in	0.98 in
CUI Inc. SWI5-9-EW-P5	90 V	264 V	Positive Center	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	ITE (Commercial)	40 °C	CE	78.35 %	5.4 W	600 mA	CEE 7/16	Wall Mount (Class II)	9 V	Europe	Fixed Blade	62368-1	75 mW	59 in	2.6 in	2.8 in	0.98 in
