2966485

Active

Phoenix Contact

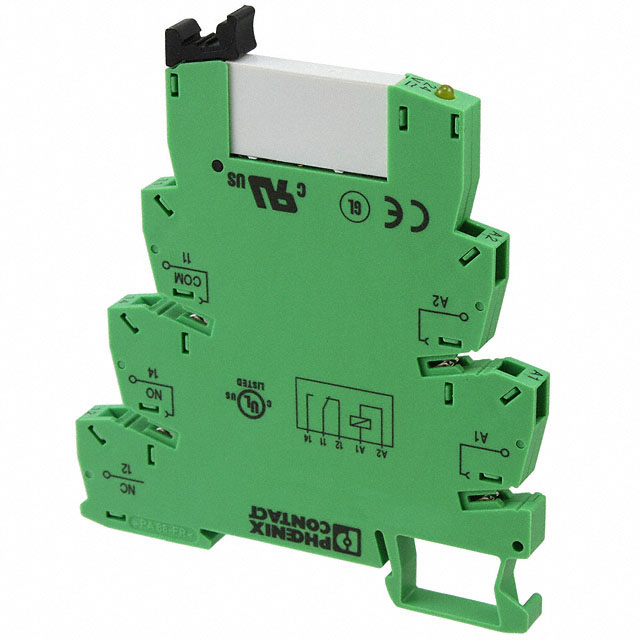

RELAY GEN PURPOSE SPDT 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2966485	29664 Series

Approval Agency	-	UKCA, CE
Coil Current	11 mA	3.2 - 11 mA
Coil Resistance	2.182 kOhms	2.182 - 71.875 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VAC	24 - 230 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), SPST-NC (1 Form B)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO), Silver (Ag), Gold (Au)
Contact Rating (Current)	6 A	6 A
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	6 ms	5 - 6 ms
Operating Temperature [Max]	60 °C	55 - 60 °C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Relay Type	General Purpose	General Purpose
Release Time	15 ms	8 - 15 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Spring Terminal	Spring Terminal, Screw Terminal

RELAY GEN PURPOSE SPDT 6A 24V

Part	Coil Type	Mounting Type	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Contact Material	Contact Form	Features	Termination Style	Coil Resistance	Coil Voltage	Switching Voltage	Operate Time	Contact Rating (Current)	Relay Type	Approval Agency
Phoenix Contact 2966485	Non Latching	DIN Rail	15 ms	-25 °C	60 °C	11 mA	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	Lighted Indicator, Socket Included	Spring Terminal	2.182 kOhms	24 VAC	250 VAC, 250 VDC	6 ms	6 A	General Purpose
Phoenix Contact 2966443	Non Latching	DIN Rail		-25 °C	55 °C	3.2 mA	Gold (Au), Silver (Ag)	SPST-NC (1 Form B)	Lighted Indicator, Socket Included	Screw Terminal	71.875 kOhms	230 VAC	250 VAC, 250 VDC		6 A	General Purpose	CE, UKCA
Phoenix Contact 2966498	Non Latching	DIN Rail	8 ms	-40 °C	60 °C	9.2 mA	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	Lighted Indicator, Socket Included	Spring Terminal	5.22 kOhms	48 VDC	250 VAC, 250 VDC	5 ms	6 A	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VAC/DC Coil DIN Rail
