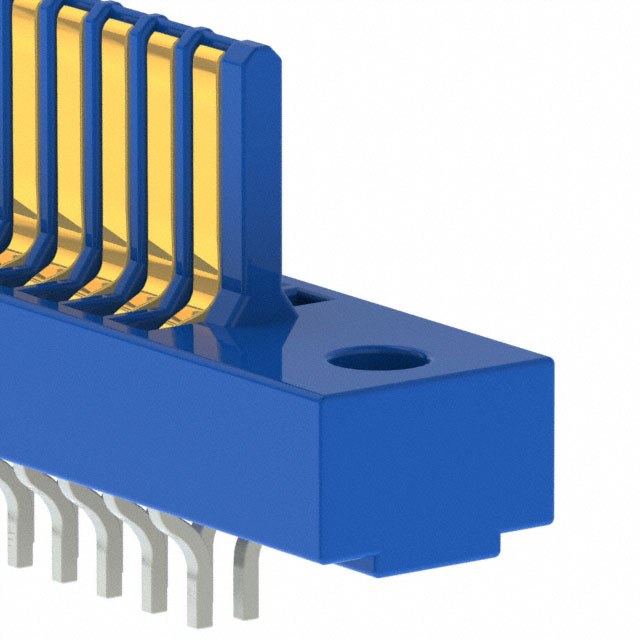

EBC35MMRD

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 70POS 0.100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBC35MMRD

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Fits Female Edgecards
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature	0.125 "
Flange Feature	3.18 mm
Gender	Male
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	70
Number of Positions/Bay/Row [custom]	35
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

EBC35 Series

...

Part	Flange Feature	Mounting Type	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions	Gender	Termination	Card Thickness	Card Thickness	Number of Positions/Bay/Row [custom]	Contact Type	Contact Finish	Contact Material	Material - Insulation	Color	Flange Feature [diameter]	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
Sullins Connector Solutions EBC35DRMT	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Non Specified - Dual Edge	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Female	Wire Wrap	0.062 in	1.57 mm	35	Loop Bellows	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions EBC35MMBN		Through Hole Right Angle	Fits Female Edgecards	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Male	Solder	0.062 in	1.57 mm	35		Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Blue
Sullins Connector Solutions EBC35DRTH-S13	Top Mount Opening Unthreaded	Board Edge Straddle Mount	Non Specified - Dual Edge	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Female	Solder	0.062 in	1.57 mm	35	Full Bellows	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Blue	0.125 in	3.18 mm	Card Extender
Sullins Connector Solutions EBC35DREN		Free Hanging (In-Line)	Non Specified - Dual Edge	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Female	Solder Eyelet(s)	0.062 in	1.57 mm	35	Full Bellows	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Blue
Sullins Connector Solutions EBC35DRTF	Floating Bobbin Top Mount Opening	Through Hole	Non Specified - Dual Edge	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Female	Solder	0.062 in	1.57 mm	35	Full Bellows	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Blue	0.116 in	2.95 mm
Sullins Connector Solutions EBC35MMRD	Flush Mount Top Opening Unthreaded	Board Edge Straddle Mount	Fits Female Edgecards	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Male	Solder	0.062 in	1.57 mm	35		Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Blue			Card Extender	0.125 "	3.18 mm
Sullins Connector Solutions EBC35DCAH	Top Mount Opening Unthreaded	Through Hole Right Angle	Non Specified - Dual Edge	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Female	Solder	0.062 in	1.57 mm	35	Hairpin Bellows	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Blue	0.125 in	3.18 mm
Sullins Connector Solutions EBC35DRXH-S734	Top Mount Opening Unthreaded	Through Hole	Non Specified - Dual Edge	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Female	Solder	0.031 in	0.79 mm	35	Full Bellows	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Blue	0.125 in	3.18 mm
Sullins Connector Solutions EBC35DRYN-S734		Through Hole	Non Specified - Dual Edge	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Female	Solder	0.031 in	0.79 mm	35	Full Bellows	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Blue
Sullins Connector Solutions EBC35MMMD	Flush Mount Top Opening Unthreaded	Through Hole	Fits Female Edgecards	125 °C	-65 ░C	2	2.54 mm	0.1 in	10 Áin	0.25 Ám	Dual	70	Male	Wire Wrap	0.062 in	1.57 mm	35		Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Blue				0.125 "	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 7.93

Description

General part information

EBC35 Series

70 Position Male Connector Fits Female Edgecards Gold 0.100" (2.54mm) Blue

Documents

Technical documentation and resources

No documents available
