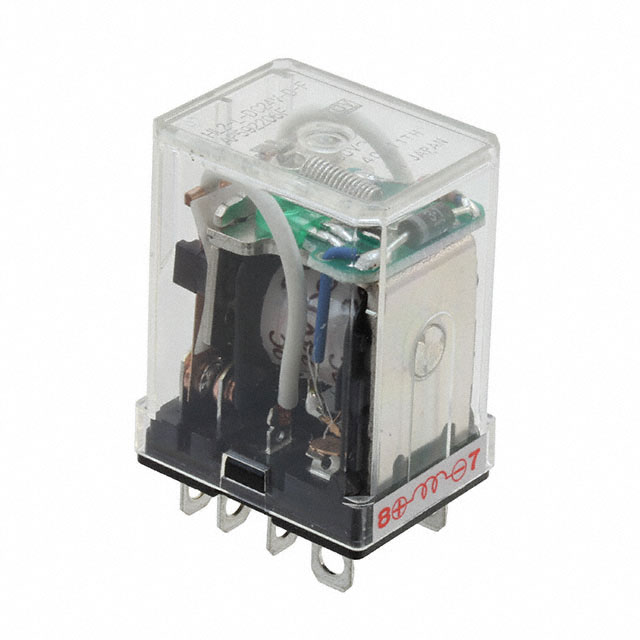

HL2-L-DC24V-D-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 10A 24V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Current	Termination Style	Contact Rating (Current)	Coil Type	Contact Form	Features	Coil Voltage	Switching Voltage	Coil Resistance	Must Operate Voltage	Contact Material	Must Release Voltage	Mounting Type	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Release Time	Relay Type
Panasonic Electric Works HL2-L-DC24V-D-F	37 mA	Plug In Quick Connect - 0.187" (4.7mm)	10 A	Non Latching	DPDT (2 Form C)	Diode Lighted Indicator	24 VDC	125 VAC	650 Ohms	19.2 VDC	Silver Tin Oxide (AgSnO)	2.4 VDC	Socketable	25 ms	60 °C	-50 °C	cURus TUV	25 ms	General Purpose
Panasonic Electric Works HL2-L-DC12V-F	75 mA	Plug In Quick Connect - 0.187" (4.7mm)	10 A	Non Latching	DPDT (2 Form C)	Lighted Indicator	12 VDC	125 VAC	160 Ohms	9.6 VDC	Silver Tin Oxide (AgSnO)	1.2 VDC	Socketable	25 ms	60 °C	-50 °C	cURus TUV	25 ms	General Purpose
Panasonic Electric Works HL2-L-DC12V	75 mA	Plug In Quick Connect - 0.187" (4.7mm)	10 A	Non Latching	DPDT (2 Form C)	Lighted Indicator	12 VDC	125 VAC	160 Ohms	9.6 VDC	Silver Alloy	1.2 VDC	Socketable	10 ms	70 °C	-50 °C	cURus TUV	5 ms	General Purpose
Panasonic Electric Works HL2-L-DC110V	10 mA	Plug In Quick Connect - 0.187" (4.7mm)	10 A	Non Latching	DPDT (2 Form C)	Lighted Indicator	110 VDC	125 VAC		88 VDC	Silver Alloy	11 VDC	Socketable	10 ms	70 °C	-50 °C	cURus TUV	5 ms	General Purpose
Panasonic Electric Works HL2-L-DC24V	37 mA	Plug In Quick Connect - 0.187" (4.7mm)	10 A	Non Latching	DPDT (2 Form C)	Lighted Indicator	24 VDC	125 VAC	650 Ohms	19.2 VDC	Silver Alloy	2.4 VDC	Socketable	10 ms	70 °C	-50 °C	cURus TUV	5 ms	General Purpose
