307-008-447-158

Active

EDAC Inc.

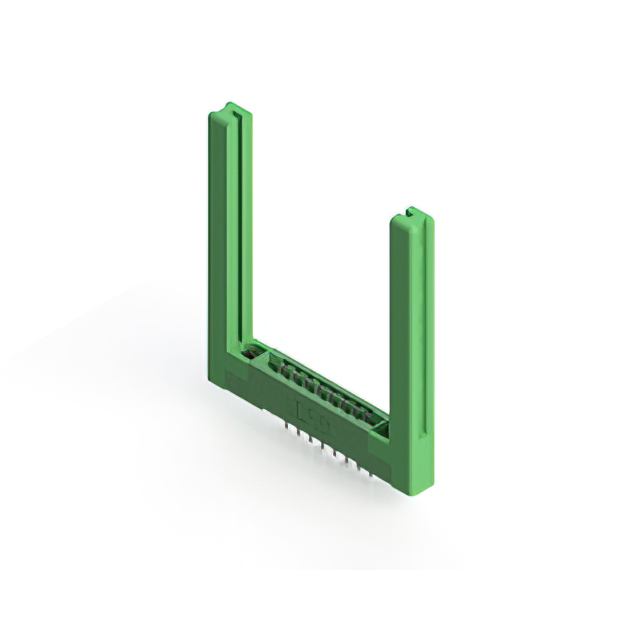

CONN EDGE SGL FML 8POS 0.156 TIN

307-008-447-158

Active

EDAC Inc.

CONN EDGE SGL FML 8POS 0.156 TIN

Description Specifications Series Pricing CAD Documents

Description

General part information

307-008 Series

8 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	307-008-447-158

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

307-008 Series

...

Part	Contact Finish	Termination	Pitch	Card Thickness (Min)	Card Thickness (Max)	Card Type	Contact Type	Contact Material	Features	Read Out	Number of Rows	Mounting Type	Number of Positions	Color	Gender	Contact Finish Thickness	Flange Feature	Operating Temperature (Min)	Operating Temperature (Max)	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 307-008-553-168	Gold	Solder	0.156 in	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	Copper Alloy	Card Guides	Dual	2	Right Angle Through Hole	8 16	Green	Female	10 Ąin	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 307-008-554-158	Gold	Solder Eyelet(s)	0.156 in	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	Copper Alloy	Card Guides	Dual	2	Surface Mount	8 16	Green	Female	10 Ąin	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 307-008-431-102	Tin	Solder	0.156 in	0.054 in	0.07 in	Non Specified Single Edge	Semi Bellows	Copper Alloy		Single	1	Through Hole	8	Green	Female		Flush Mount Top Opening Unthreaded	-40 °C	105 °C	Polyester Thermoplastic	1 rows	0.128 in
EDAC Inc. 307-008-558-101	Gold	Solder	0.156 in	0.054 in	0.07 in	Non Specified Single Edge	Semi Bellows	Copper Alloy		Single	1	Right Angle Through Hole	8	Green	Female	10 Ąin		-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 307-008-545-112	Gold	Wire Wrap	0.156 in	0.054 in	0.07 in	Non Specified Single Edge	Semi Bellows	Copper Alloy		Single	1	Through Hole	8	Green	Female	10 Ąin	Flush Mount Side Opening Unthreaded	-40 °C	105 °C	Polyester Thermoplastic	1 rows	0.128 in
EDAC Inc. 307-008-554-103	Gold	Solder Eyelet(s)	0.156 in	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	Copper Alloy		Dual	2	Surface Mount	8 16	Green	Female	10 Ąin	Floating Bobbin Flush Mount	-40 °C	105 °C	Polyester Thermoplastic	1 rows	0.116 in
EDAC Inc. 307-008-554-108	Gold	Solder Eyelet(s)	0.156 in	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	Copper Alloy		Dual	2	Surface Mount	8 16	Green	Female	10 Ąin	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 307-008-554-112	Gold	Solder Eyelet(s)	0.156 in	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	Copper Alloy		Dual	2	Surface Mount	8 16	Green	Female	10 Ąin	Flush Mount Side Opening Unthreaded	-40 °C	105 °C	Polyester Thermoplastic	1 rows	0.128 in
EDAC Inc. 307-008-445-103	Tin	Wire Wrap	0.156 in	0.054 in	0.07 in	Non Specified Single Edge	Semi Bellows	Copper Alloy		Single	1	Through Hole	8	Green	Female		Floating Bobbin Flush Mount	-40 °C	105 °C	Polyester Thermoplastic	1 rows	0.116 in
EDAC Inc. 307-008-447-158	Tin	Wire Wrap	0.156 in	0.054 in	0.07 in	Non Specified Single Edge	Semi Bellows	Copper Alloy	Card Guides	Single	1	Through Hole	8	Green	Female		4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	Polyester Thermoplastic	1 rows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

307-008-447-158 | Datasheet
