8B1011-Z

Active

Nidec Components Corporation

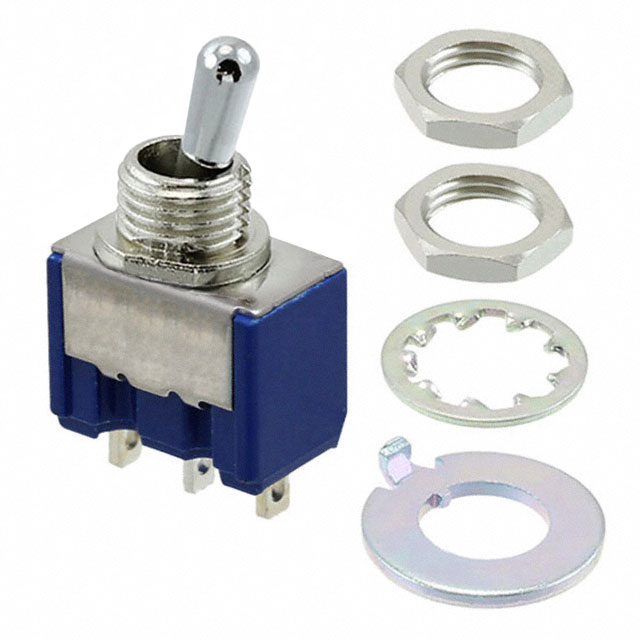

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Active

Nidec Components Corporation

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8B1011-Z

Actuator Length [x]	11.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SWITCH TOGGLE SPDT 6A 125V

Part	Illumination	Panel Cutout Dimensions [diameter]	Switch Function	Bushing Thread	Circuit	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Termination Style	Actuator Length [x]	Features	Current Rating (Amps)	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]
Nidec Components Corporation 8B1011-Z	Non-Illuminated	12.5 mm	On-On	15/32-32	SPDT	30 V	Standard Round	125 V	Solder Lug	11.5 mm	Sealed - Flux Protection	4 A, 6 A	50000 Cycles	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.31

General part information

Toggle Switch SPDT Panel Mount
