UPS340/TR13

Active

Microchip Technology

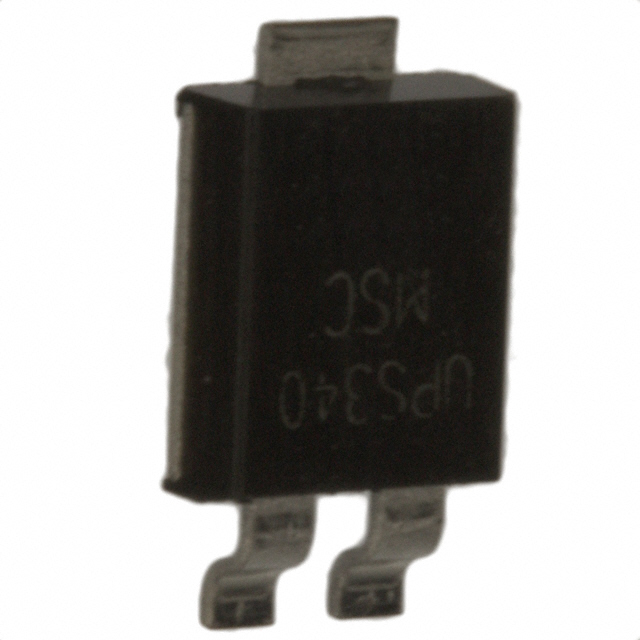

DIODE SCHOTTKY 40V 3A POWERMITE3

Search across all available documentation for this part.

Active

Microchip Technology

DIODE SCHOTTKY 40V 3A POWERMITE3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPS340/TR13	UPS340 Series

Capacitance @ Vr, F	180 pF	180 pF
Current - Average Rectified (Io)	3 A	3 A
Current - Reverse Leakage @ Vr	500 µA	500 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	125 °C	125 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	Powermite®3	Powermite®3
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	Powermite 3	Powermite 3
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V	40 V
Voltage - Forward (Vf) (Max) @ If	500 mV	500 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Part	Capacitance @ Vr, F	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Mounting Type	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]
Microchip Technology UPS340/TR13	180 pF	Schottky	40 V	200 mA, 500 ns	Powermite®3	Powermite 3	500 mV	3 A	Surface Mount	500 µA	-55 °C	125 °C
Microchip Technology UPS340E3/TR13	180 pF	Schottky	40 V	200 mA, 500 ns	Powermite®3	Powermite 3	500 mV	3 A	Surface Mount	500 µA	-55 °C	125 °C
