04056EA-12R-EUB-02

Active

NMB TECHNOLOGIES

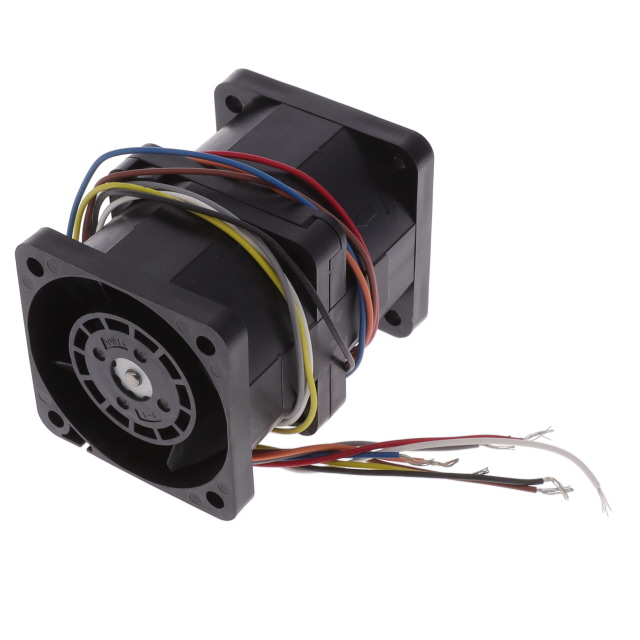

FAN AXIAL DUAL 40X56MM 12VDC

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN AXIAL DUAL 40X56MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	04056EA-12R-EUB-02

Air Flow	30.3 CFM
Air Flow	0.848 m³/min
Approval Agency	CE, cULus, VDE
Bearing Type	Ball
Current Rating (Amps)	1.3 A
Fan Type	Tubeaxial (Dual)
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	69 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	15.6 W
RPM [custom]	20000 RPM
RPM [custom]	18000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	3.1 in H2O
Static Pressure	772.2 Pa
Termination	4 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Width [x]	56 mm

FAN AXIAL DUAL 40X56MM 12VDC

Part	Material - Blade	Termination	Current Rating (Amps)	Material - Frame	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	RPM [custom]	RPM [custom]	Approval Agency	Lifetime @ Temp.	Voltage - Rated	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Static Pressure	Static Pressure	Features	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Fan Type	Noise	Width [x]	Air Flow	Air Flow
NMB TECHNOLOGIES 04056EA-12R-EUB-02	Plastic	4 Wire Leads per Fan	1.3 A	Plastic	40 mm	Square	40 mm	20000 RPM	18000 RPM	CE, cULus, VDE	70000 Hrs	12 VDC	15.6 W	-10 °C	-10 °C	60 °C	60 °C	3.1 in H2O	772.2 Pa	Auto Restart, PWM Control, Speed Sensor (Tach)	10.8 VDC	12.6 VDC	Ball	Tubeaxial (Dual)	69 dB	56 mm	30.3 CFM	0.848 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 30.3 CFM (0.848m³/min) 4 Wire Leads per Fan
