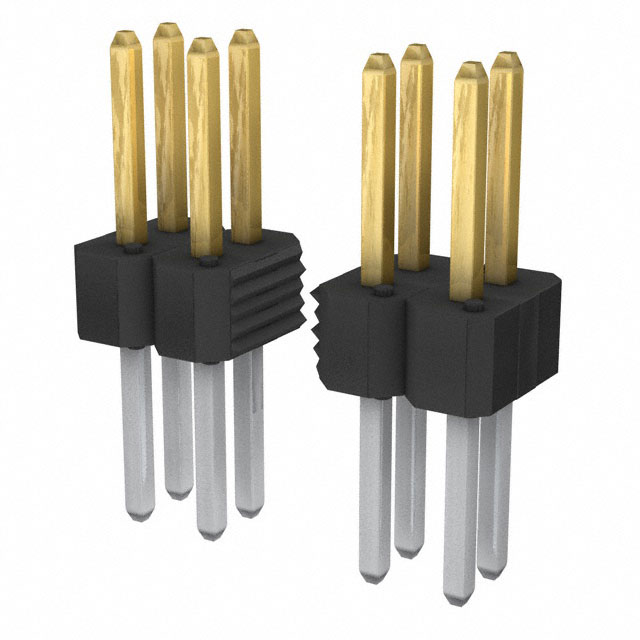

10119109-210018LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet bus-12-059 Other Related Document

10119109-210018LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet bus-12-059 Other Related Document

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10119109-210018LF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	5.72 mm
Contact Length - Post [x]	0.225 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.555 in
Overall Contact Length	14.1 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

10119109 Series

Part	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Length - Mating	Contact Length - Mating	Termination	Connector Type	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Number of Positions Loaded	Number of Positions	Insulation Height	Insulation Height	Material Flammability Rating	Shrouding	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Number of Positions
Amphenol ICC (FCI) 10119109-372006LF	0.1 in	2.54 mm	16.51 mm	0.65 in	Through Hole	10.92 mm	0.43 in	Solder	Breakaway Header	Gold	0.12 in	3.05 mm	Male Pin	2.54 mm	0.1 in	2	Black	1.27 µm	50 µin	Copper Alloy	Push-Pull	All	72	0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square
Amphenol ICC (FCI) 10119109-526005HLF	0.1 in	2.54 mm		13.34 mm	Through Hole			Solder	Breakaway Header	Gold			Male Pin	2.54 mm	0.1 in	2	Black	0.76 Ám	30 Áin	Copper Alloy	Push-Pull	All	26	0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square	0.107 "	2.71 mm	0.318 "	8.08 mm	0.525 in
Amphenol ICC (FCI) 10119109-210018LF	0.1 in	2.54 mm		14.1 mm	Through Hole		5.84 mm	Solder	Breakaway Header	Gold or Gold GXT™	0.225 in	5.72 mm	Male Pin	2.54 mm	0.1 in	2	Black	0.38 µm	15 µin	Copper Alloy	Push-Pull	All	10	0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square			0.23 in		0.555 in
Amphenol ICC (FCI) 10119109-236019LF	0.1 in	2.54 mm		14.94 mm	Through Hole			Solder	Breakaway Header	Gold or Gold GXT™			Male Pin	2.54 mm	0.1 in	2	Black	0.38 µm	15 µin	Copper Alloy	Push-Pull	All	36	0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square	0.17 in	4.32 mm	0.318 "	8.08 mm	0.588 "
Amphenol ICC (FCI) 10119109-116004LF	0.1 in	2.54 mm			Through Hole		5.84 mm	Solder	Breakaway Header	Gold or Gold GXT™	0.095 in	2.41 mm	Male Pin	2.54 mm	0.1 in	2	Black	0.76 Ám	30 Áin	Copper Alloy	Push-Pull	All		0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square			0.23 in			16
Amphenol ICC (FCI) 10119109-120004LF	0.1 in	2.54 mm			Through Hole		5.84 mm	Solder	Breakaway Header	Gold or Gold GXT™	0.095 in	2.41 mm	Male Pin	2.54 mm	0.1 in	2	Black	0.76 Ám	30 Áin	Copper Alloy	Push-Pull	All	20	0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square			0.23 in
Amphenol ICC (FCI) 10119109-550022LF	0.1 in	2.54 mm		11.43 mm	Through Hole		5.84 mm	Solder	Breakaway Header	Gold	0.12 in	3.05 mm	Male Pin	2.54 mm	0.1 in	2	Black	0.76 Ám	30 Áin	Copper Alloy	Push-Pull	All	50	0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square			0.23 in		0.45 "
Amphenol ICC (FCI) 10119109-202004LF					Through Hole		5.84 mm	Solder	Breakaway Header	Gold or Gold GXT™	0.095 in	2.41 mm	Male Pin	2.54 mm	0.1 in	2	Black	0.38 µm	15 µin	Copper Alloy	Push-Pull	All	2	0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square			0.23 in
Amphenol ICC (FCI) 10119109-372014LF	0.1 in	2.54 mm		19.3 mm	Through Hole			Solder	Breakaway Header	Gold	0.12 in	3.05 mm	Male Pin	2.54 mm	0.1 in	2	Black	1.27 µm	50 µin	Copper Alloy	Push-Pull	All	72	0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square					0.76 in
Amphenol ICC (FCI) 10119109-916021LF	0.1 in	2.54 mm		11.68 mm	Through Hole		6.1 mm	Solder	Breakaway Header	Gold	0.12 in	3.05 mm	Male Pin	2.54 mm	0.1 in	2	Black	0.051 µm	2 µin	Copper Alloy	Push-Pull	All		0.1 in	2.54 mm	UL94 V-0	Unshrouded	Square			0.24 in		0.46 "	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	3200	$ 0.63
