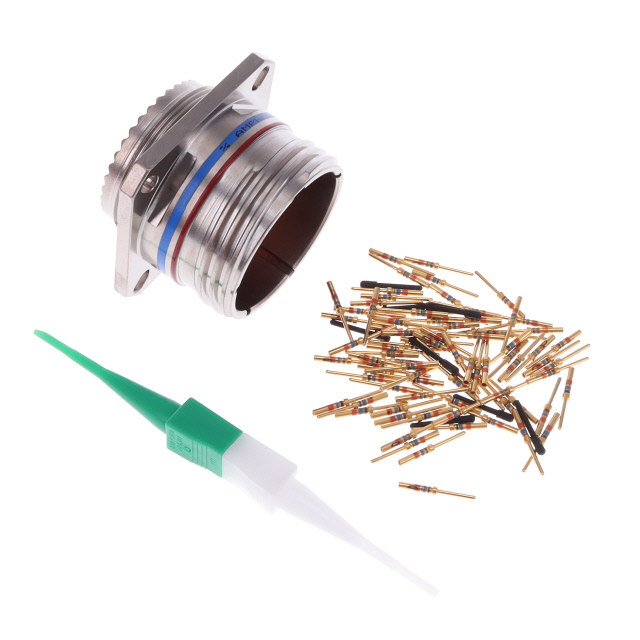

D38999/20FG35PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 79POS GOLD CRIMP

D38999/20FG35PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 79POS GOLD CRIMP

Description Specifications Series Pricing CAD Documents

Description

General part information

D38999/20FG Series

79 Position Circular Connector Receptacle, Male Pins Crimp

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20FG35PN

Applications	Military, Aerospace, Marine, Aviation
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Threaded
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	79
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert (Maximum)	35
Shell Size - Insert (Minimum)	21
Shell Size (MIL)	G
Shielding	Shielded
Termination	Crimp

D38999/20FG Series

...

Part	Shielding	Primary Material	Color	Grade	Mounting Type	Shell Material	Connector Type	Termination	Mounting Feature	Qualification	Ingress Protection	Material Flammability Rating	Orientation	Number of Positions	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shell Size (MIL)	Fastening Type	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Shell Finish	Applications	Contact Material	Insert Material	Contact Finish Thickness - Mating	Shell Size - Insert Length	Shell Size - Insert Width	Housing Color	Contact Size	Type	Contact Type	Note	Contact Shape	Contact Size Options
Amphenol Aerospace Operations D38999/20FG41PN	Shielded	Metal	Silver	Military	Panel Mount	Aluminum	Male Pins Receptacle	Crimp	Flange	MIL-DTL-38999 Series III	Waterproof	UL94 V-0	N (Normal)	41	21	41	G	Threaded	7.5 A	125 °C	-65 °C	Gold	Electroless Nickel	Aerospace Aviation Military	Copper Alloy	Thermoplastic	50 µin
Amphenol Aerospace Operations D38999/20FG35PA	Shielded	Metal	Silver	Military	Panel Mount	Aluminum	Male Pins Receptacle	Crimp	Flange	MIL-DTL-38999 Series III	Environment Resistant		A	79	21	35	G	Threaded		200 °C	-65 °C	Gold	Electroless Nickel	Aerospace Aviation Marine Military	Copper Alloy		50 µin
Amphenol Aerospace Operations D38999/20FG35PN	Shielded	Metal	Silver	Military	Panel Mount	Aluminum	Male Pins Receptacle	Crimp	Flange	MIL-DTL-38999 Series III	Environment Resistant		N (Normal)	79	21	35	G	Threaded		200 °C	-65 °C	Gold	Electroless Nickel	Aerospace Aviation Marine Military	Copper Alloy		50 µin
Amphenol Aerospace Operations D38999/20FG16AN	Shielded	Metal		Military	Panel Mount	Aluminum Aluminum Alloy	Plug Housing Receptacle Housing		Flange	MIL-DTL-38999 Series III	Environment Resistant		N (Normal)	16			G	Threaded		200 °C	-65 °C		Electroless Nickel					21 mm	16 mm	Silver	16 S	For Male Pins	Crimp	Contacts Not Included	Circular
Amphenol Aerospace Operations D38999/20FG35JN-LC	Shielded	Metal		Military	Panel Mount	Aluminum Aluminum Alloy	Receptacle Housing		Flange	MIL-DTL-38999 Series III	Environment Resistant		N (Normal)	79	21	35	G	Threaded		200 °C	-65 °C		Electroless Nickel							Silver		For Female Sockets	Crimp	Contacts Not Included	Circular	22D

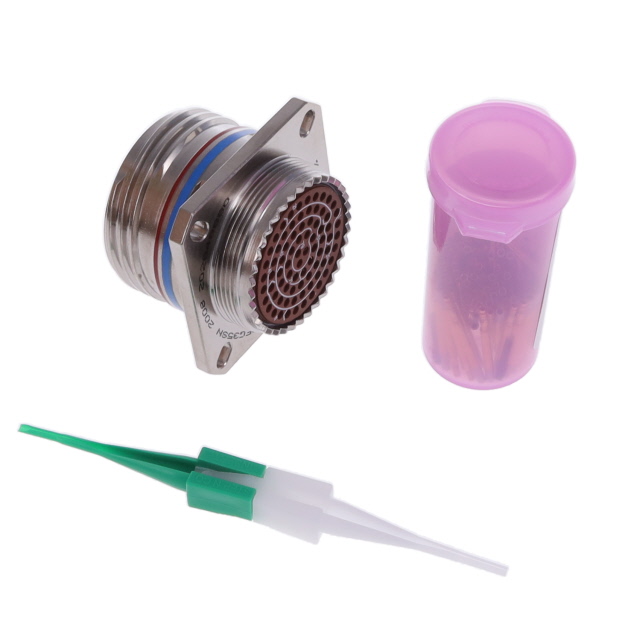

Amphenol Aerospace Operations D38999/20FG35SN	Shielded	Metal	Silver	Military	Panel Mount	Aluminum	Female Sockets Receptacle	Crimp	Flange	MIL-DTL-38999 Series III	Environment Resistant		N (Normal)	79	21	35	G	Threaded		200 °C	-65 °C	Gold	Electroless Nickel	Aerospace Aviation Marine Military	Copper Alloy		50 µin
Amphenol Aerospace Operations D38999/20FG41AA	Shielded	Metal		Military	Panel Mount	Aluminum Aluminum Alloy	Plug Housing Receptacle Housing		Flange	MIL-DTL-38999 Series III	Environment Resistant		A	41	21	41	G	Threaded		200 °C	-65 °C		Electroless Nickel			Thermoplastic				Silver	20	For Male Pins	Crimp	Contacts Not Included	Circular
Amphenol Aerospace Operations D38999/20FG39PN-LC	Shielded	Metal		Military	Panel Mount	Aluminum Aluminum Alloy	Plug Housing Receptacle Housing		Flange	MIL-DTL-38999 Series III	Environment Resistant		N (Normal)	39	21	39	G	Threaded		200 °C	-65 °C		Electroless Nickel							Silver	16 20	For Male Pins	Crimp	Contacts Not Included	Circular
Amphenol Aerospace Operations D38999/20FG16HN-LC	Shielded	Metal		Military	Panel Mount	Aluminum Aluminum Alloy	Receptacle Housing		Flange	MIL-DTL-38999 Series III	Environment Resistant		N (Normal)	16			G	Threaded		200 °C	-65 °C		Electroless Nickel					21 mm	16 mm	Silver	16 S	For Male Pins	Crimp	Contacts Not Included	Circular
Amphenol Aerospace Operations D38999/20FG11PNL	Unshielded			Military	Panel Mount	Aluminum	Receptacle Housing		Flange	MIL-DTL-38999 Series III	Environment Resistant		N (Normal)	11			G	Threaded		200 °C	-65 °C		Nickel			Thermoplastic		21 mm	11 mm	Silver	12	For Male Pins	Crimp	Contacts Not Included	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

D38999/20FG35PN | Datasheet
