Q-1U0440005060i

Active

Amphenol Custom Cable

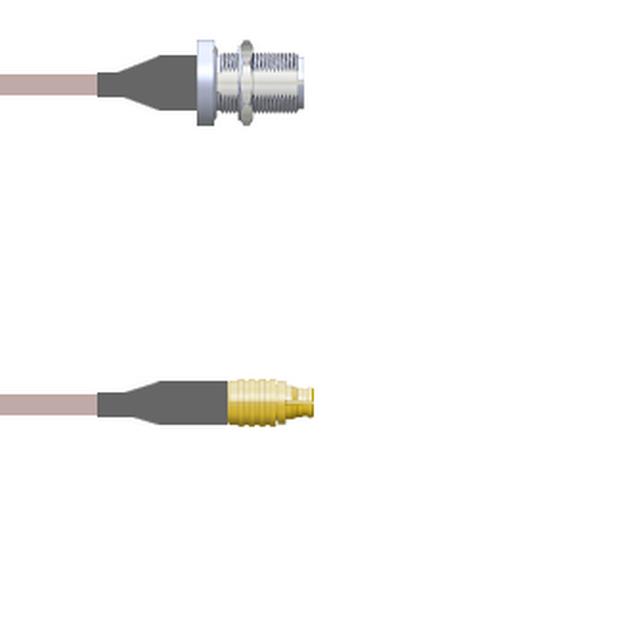

CBL ASSY SMP-NTYPE PLUG-JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U0440005060i

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLUG-JACK 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U0440005060i

1st Connector	SMP Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	SMP to N-Type

Q-1U0440 Series

Part	Cable Type	1st Contact Gender	Features	Color	Style	Frequency - Max [Max]	1st Connector	2nd Contact Gender	Length	Length	Length	2nd Connector Mounting Feature	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector	Overall Impedance
Amphenol Custom Cable Q-1U0440005072i	RG-316	Male	Shielded	Copper	SMP to N-Type	11 GHz	SMP Plug	Female	6 ft	72 in	1.8 m	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms
Amphenol Custom Cable Q-1U0440003048i	RG-174	Male	Shielded	Black	SMP to N-Type	11 GHz	SMP Plug	Female	4 ft	48 in	1200 mm	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms
Amphenol Custom Cable Q-1U0440005060i	RG-316	Male	Shielded	Copper	SMP to N-Type	11 GHz	SMP Plug	Female	5 ft	5 '	1.5 m	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms
Amphenol Custom Cable Q-1U0440003108i	RG-174	Male	Shielded	Black	SMP to N-Type	11 GHz	SMP Plug	Female	9 ft	108 in	2.7 m	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms
Amphenol Custom Cable Q-1U0440003084i	RG-174	Male	Shielded	Black	SMP to N-Type	11 GHz	SMP Plug	Female	7 ft	84 in	2.1 m	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms
Amphenol Custom Cable Q-1U0440003.75M	RG-174	Male	Shielded	Black	SMP to N-Type	11 GHz	SMP Plug	Female		29.53 "	750 mm	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms
Amphenol Custom Cable Q-1U04400052.5M	RG-316	Male	Shielded	Copper	SMP to N-Type	11 GHz	SMP Plug	Female	8.2 '	98.4 in	2.5 m	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms
Amphenol Custom Cable Q-1U0440005003M	RG-316	Male	Shielded	Copper	SMP to N-Type	11 GHz	SMP Plug	Female	9.8 '	118.1 in	3 m	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms
Amphenol Custom Cable Q-1U0440003009i	RG-174	Male	Shielded	Black	SMP to N-Type	11 GHz	SMP Plug	Female		9 "	228.6 mm	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms
Amphenol Custom Cable Q-1U0440005003i	RG-316	Male	Shielded	Copper	SMP to N-Type	11 GHz	SMP Plug	Female		3 in	76.2 mm	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	N-Type Jack	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 170.03
		25	$ 166.77
		50	$ 163.50
		100	$ 160.23
		250	$ 156.96

Description

General part information

Q-1U0440 Series

Cable Assembly Coaxial SMP to N-Type RG-316 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
