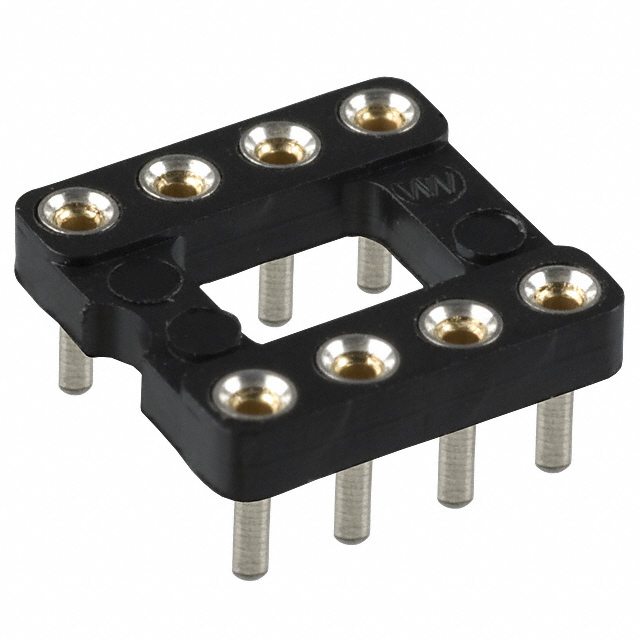

115-43-308-41-003000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

115-43-308-41-003000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	115-43-308-41-003000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	0.108 in
Termination Post Length [x]	2.74 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

115-43 Series

Part	Contact Finish - Post	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Mounting Type	Contact Material - Post	Features	Contact Material - Mating	Termination Post Length [x]	Termination Post Length [x]	Type	Type	Type	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Resistance	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Termination Post Length	Termination Post Length
Mill-Max Manufacturing Corp. 115-43-314-41-003000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	14	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 115-43-422-41-003000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	22	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.4 in	10.16 mm	DIP	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 115-43-624-41-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	24	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 115-43-632-61-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in		Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	0.1 in	2.54 mm	2 x 16	32	10 mOhm	UL94 V-0
Mill-Max Manufacturing Corp. 115-43-308-41-003000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	8	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 115-43-322-61-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	22	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm			10 mOhm	UL94 V-0
Mill-Max Manufacturing Corp. 115-43-650-61-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in		Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	0.1 in	2.54 mm			10 mOhm	UL94 V-0	25	2	50
Mill-Max Manufacturing Corp. 115-43-422-61-003000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	22	Through Hole	Brass Alloy	Open Frame	Beryllium Copper			0.4 in	10.16 mm	DIP	0.1 in	2.54 mm			10 mOhm	UL94 V-0				2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 115-43-432-61-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in		Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.4 in	10.16 mm	DIP	0.1 in	2.54 mm	2 x 16	32	10 mOhm	UL94 V-0
Mill-Max Manufacturing Corp. 115-43-650-41-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in		Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	0.1 in	2.54 mm			10 mOhm	UL94 V-0	25	2	50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.50
		10	$ 1.30
		25	$ 1.25
		50	$ 1.22
		100	$ 1.16
		250	$ 1.05
		500	$ 0.97
		1000	$ 0.83
		2500	$ 0.78

Description

General part information

115-43 Series

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
