357-011-554-158

Active

EDAC Inc.

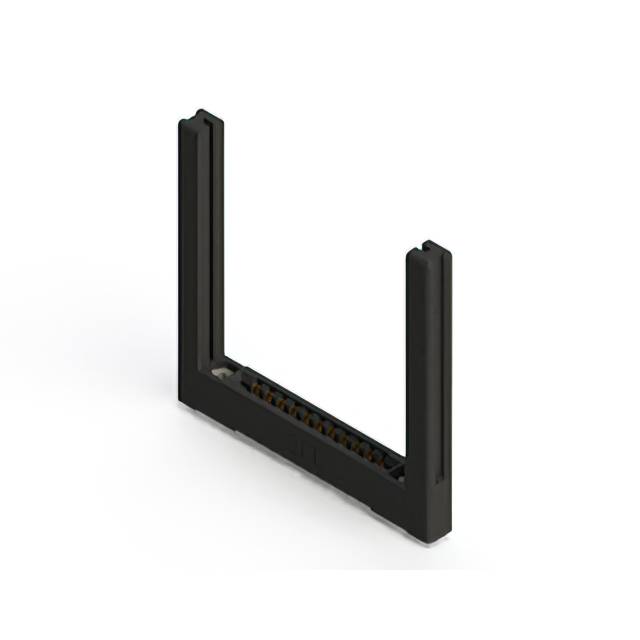

CONN EDGE DUAL FMALE 22POS 0.156

357-011-554-158

Active

EDAC Inc.

CONN EDGE DUAL FMALE 22POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

357-011 Series

22 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	357-011-554-158

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Surface Mount
Number of Positions	11, 22
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1 rows

357-011 Series

...

Part	Card Thickness (Min)	Card Thickness (Max)	Pitch	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Contact Material	Color	Card Type	Read Out	Gender	Mounting Type	Contact Finish	Features	Termination	Contact Type	Flange Feature	Termination Rows	Material - Insulation	Flange Feature Diameter	Contact Finish Thickness
EDAC Inc. 357-011-401-168	0.054 in	0.07 in	0.156 in	2	-40 °C	105 °C	11 22	Copper Alloy	Black	Dual Edge Non Specified	Dual	Female	Through Hole	Tin	Card Guides	Solder Eyelet(s)	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	1 rows	Polyester Thermoplastic
EDAC Inc. 357-011-427-103	0.054 in	0.07 in	0.156 in	1	-40 °C	105 °C	11	Copper Alloy	Black	Non Specified Single Edge	Single	Female	Through Hole	Tin		Solder	Semi Bellows	Floating Bobbin Flush Mount	1 rows	Polyester Thermoplastic	0.116 in
EDAC Inc. 357-011-554-104	0.054 in	0.07 in	0.156 in	2	-40 °C	105 °C	11 22	Copper Alloy	Black	Dual Edge Non Specified	Dual	Female	Surface Mount	Gold		Solder Eyelet(s)	Semi Bellows	Flush Mount Top Opening Unthreaded	1 rows	Polyester Thermoplastic	0.156 in	10 Ąin
EDAC Inc. 357-011-453-107	0.054 in	0.07 in	0.156 in	2	-40 °C	105 °C	11 22	Copper Alloy	Black	Dual Edge Non Specified	Dual	Female	Board Edge Straddle Mount	Tin		Solder	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	1 rows	Polyester Thermoplastic
EDAC Inc. 357-011-527-112	0.054 in	0.07 in	0.156 in	1	-40 °C	105 °C	11	Copper Alloy	Black	Non Specified Single Edge	Single	Female	Through Hole	Gold		Solder	Semi Bellows	Flush Mount Side Opening Unthreaded	1 rows	Polyester Thermoplastic	0.128 in	10 Ąin
EDAC Inc. 357-011-441-101	0.054 in	0.07 in	0.156 in	2	-40 °C	105 °C	11 22	Copper Alloy	Black	Dual Edge Non Specified	Dual	Female	Through Hole	Tin		Wire Wrap	Semi Bellows		1 rows	Polyester Thermoplastic
EDAC Inc. 357-011-531-107	0.054 in	0.07 in	0.156 in	1	-40 °C	105 °C	11	Copper Alloy	Black	Non Specified Single Edge	Single	Female	Through Hole	Gold		Solder	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	1 rows	Polyester Thermoplastic		10 Ąin
EDAC Inc. 357-011-554-158	0.054 in	0.07 in	0.156 in	2	-40 °C	105 °C	11 22	Copper Alloy	Black	Dual Edge Non Specified	Dual	Female	Surface Mount	Gold	Card Guides	Solder Eyelet(s)	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	1 rows	Polyester Thermoplastic		10 Ąin
EDAC Inc. 357-011-545-112	0.054 in	0.07 in	0.156 in	1	-40 °C	105 °C	11	Copper Alloy	Black	Non Specified Single Edge	Single	Female	Through Hole	Gold		Wire Wrap	Semi Bellows	Flush Mount Side Opening Unthreaded	1 rows	Polyester Thermoplastic	0.128 in	10 Ąin
EDAC Inc. 357-011-545-108	0.054 in	0.07 in	0.156 in	1	-40 °C	105 °C	11	Copper Alloy	Black	Non Specified Single Edge	Single	Female	Through Hole	Gold		Wire Wrap	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	1 rows	Polyester Thermoplastic		10 Ąin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

357-011-554-158 | Datasheet
