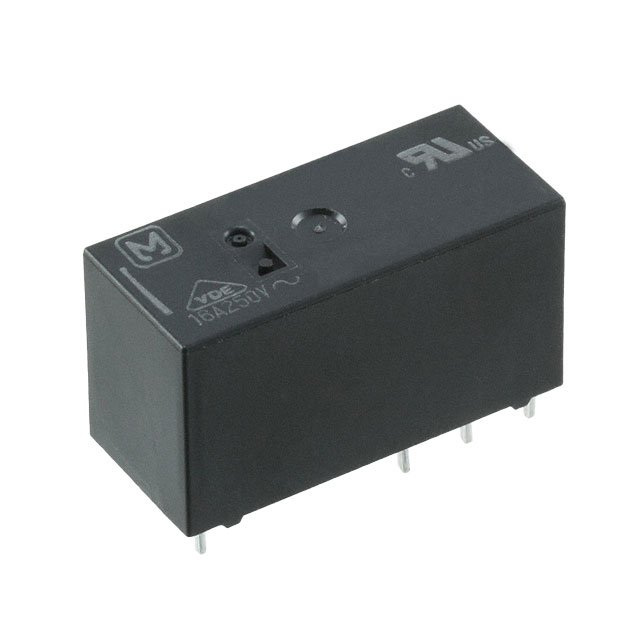

ALZ11F12

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPDT 16A 12V

Deep-Dive with AI

DocumentsStandards Chart How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALZ11F12

Approval Agency	cURus, VDE
Coil Current	33.3 mA
Coil Insulation	Class F
Coil Resistance	360 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	16 A
Load - Max Switching	7040 VA
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	15 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	440 VAC
Termination Style	PC Pin

ALZ11F Series

Part	Seal Rating	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Contact Rating (Current)	Operate Time	Mounting Type	Contact Material	Coil Insulation	Must Operate Voltage	Termination Style	Coil Voltage	Release Time	Must Release Voltage	Load - Max Switching	Relay Type	Contact Form	Approval Agency	Coil Type	Switching Voltage	Coil Current
Panasonic Electric Works ALZ11F4H	Sealed - Flux Protection	-40 °C	105 ░C	50.6 Ohms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	3.15 VDC	PC Pin	4.5 VDC	5 ms	0.45 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	88.9 mA
Panasonic Electric Works ALZ11F12	Sealed - Flux Protection	-40 °C	105 ░C	360 Ohms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	8.4 VDC	PC Pin	12 VDC	5 ms	1.2 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	33.3 mA
Panasonic Electric Works ALZ11F18W	Sealed - Flux Protection	-40 °C	105 ░C	810 Ohms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	12.6 VDC	PC Pin	18 VDC	5 ms	1.8 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	22.2 mA
Panasonic Electric Works ALZ11F09W	Sealed - Flux Protection	-40 °C	105 ░C	203 Ohms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	6.3 VDC	PC Pin	9 VDC	5 ms	0.9 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	44.4 mA
Panasonic Electric Works ALZ11F06	Sealed - Flux Protection	-40 °C	105 ░C	90 Ohms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	4.2 VDC	PC Pin		5 ms	0.6 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	66.7 mA
Panasonic Electric Works ALZ11F06W	Sealed - Flux Protection	-40 °C	105 ░C	90 Ohms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	4.2 VDC	PC Pin		5 ms	0.6 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	66.7 mA
Panasonic Electric Works ALZ11F18	Sealed - Flux Protection	-40 °C	105 ░C	810 Ohms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	12.6 VDC	PC Pin	18 VDC	5 ms	1.8 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	22.2 mA
Panasonic Electric Works ALZ11F24W	Sealed - Flux Protection	-40 °C	105 ░C	1440 Ohms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	16.8 VDC	PC Pin	24 VDC	5 ms	2.4 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	16.7 mA
Panasonic Electric Works ALZ11F48W	Sealed - Flux Protection	-40 °C	105 ░C	5.76 kOhms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	33.6 VDC	PC Pin	48 VDC	5 ms	4.8 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	8.3 mA
Panasonic Electric Works ALZ11F48	Sealed - Flux Protection	-40 °C	105 ░C	5.76 kOhms	16 A	15 ms	Through Hole	Silver Tin Oxide (AgSnO)	Class F	33.6 VDC	PC Pin	48 VDC	5 ms	4.8 VDC	7040 VA	General Purpose	SPDT (1 Form C)	cURus VDE	Non Latching	440 VAC	8.3 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.55
		20	$ 2.39
		40	$ 2.02
		100	$ 1.91
		260	$ 1.70
		500	$ 1.59
		1000	$ 1.48
		5000	$ 1.43
