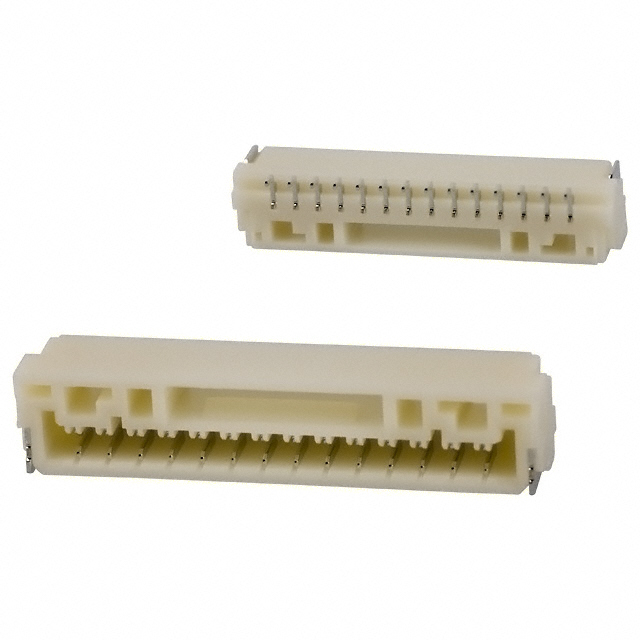

SM14B-GHS-TB

Active

JST Sales America Inc.

CONN HEADER SMD R/A 14POS 1.25MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 14POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM14B-GHS-TB

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Contact Material	Fastening Type	Termination	Style	Number of Positions	Mounting Type	Connector Type	Insulation Material	Number of Rows	Material Flammability Rating	Features	Shrouding	Contact Shape	Number of Positions Loaded	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insulation Height	Insulation Height	Contact Finish - Post	Insulation Color
JST Sales America Inc. SM14B-GHS-TB	Phosphor Bronze	Locking Ramp	Solder	Board to Cable/Wire	14	Surface Mount Right Angle	Header	Nylon 9T Polyamide (PA9T)	1	UL94 V-0	Solder Retention	Shrouded - 4 Wall	Rectangular	All	Outer Shroud Contact	1.25 mm	0.049 in	-25 °C	85 °C	50 V	0.167 in	4.25 mm	Tin	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 14 position 0.049" (1.25mm)
