Q-2H04C0001072i

Active

Amphenol Custom Cable

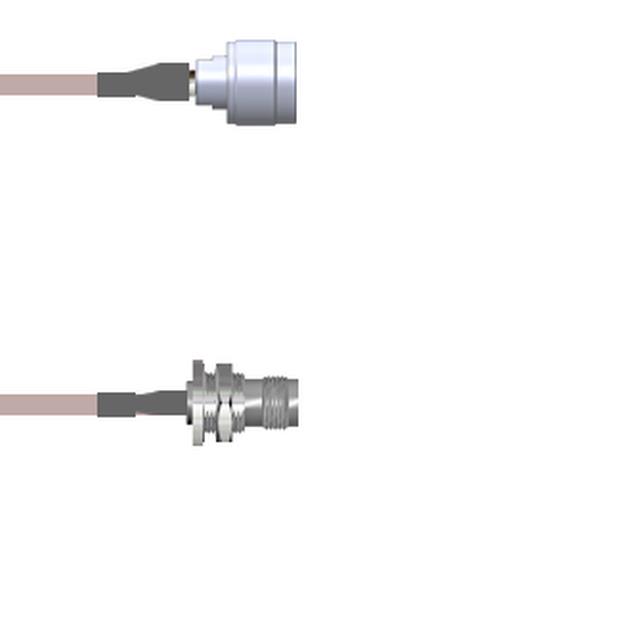

COAX CBL N-TYPE TO TNC 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H04C0001072i

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO TNC 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H04C0001072i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms

Q-2H04C0 Series

Part	Color	Features	Cable Type	2nd Connector Mounting Type	Overall Impedance	Length	Length	Frequency - Max [Max]	2nd Contact Gender	2nd Connector	1st Connector Mounting Type	1st Contact Gender	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2H04C0001012i	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms	12 "	304.8 mm	11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2H04C0001072i	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms	72 in	1.8 m	11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male	6 ft
Amphenol Custom Cable Q-2H04C0001108i	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms	108 in	2.7 m	11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male	9 ft
Amphenol Custom Cable Q-2H04C0001003M	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms	118.1 in	3 m	11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male	9.8 '
Amphenol Custom Cable Q-2H04C0001018i	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms			11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2H04C0001024i	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms	24 "	609.6 mm	11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2H04C00010.5M	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms	19.69 "	50 cm	11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2H04C0001009i	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms	9 "	228.6 mm	11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2H04C0001.25M	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms			11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male			250 mm	9.843 "
Amphenol Custom Cable Q-2H04C00012.5M	Copper	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms	98.4 in	2.5 m	11 GHz	Female	TNC Jack	Free Hanging (In-Line)	Male	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 65.09
		25	$ 63.89
		50	$ 62.68
		100	$ 61.48
		250	$ 60.27

Description

General part information

Q-2H04C0 Series

Cable Assembly Coaxial N-Type to TNC RG-178 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
