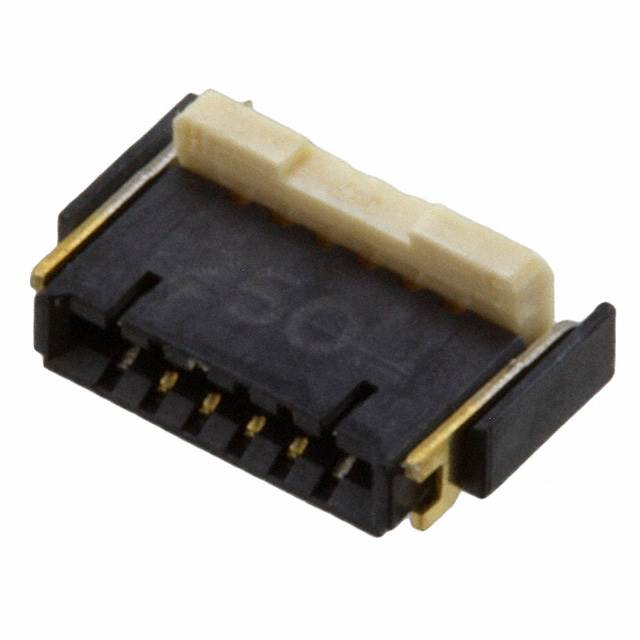

AYF530465TA

Active

Panasonic Electric Works

CONN FPC 4POS 0.5MM R/A

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN FPC 4POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF530465TA

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Notched
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	500 mA
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Material Flammability Rating	Termination	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Cable End Type	Mating Cycles	Flat Flex Type	Pitch [x]	Pitch [x]	Housing Material	Number of Positions	Actuator Material	Locking Feature	Contact Material	Voltage Rating	Connector/Contact Type	FFC, FCB Thickness	Mounting Type
Panasonic Electric Works AYF530465TA	85 °C	-55 °C	Gold	UL94 V-0	Solder	500 mA	1 mm	0.039 in	Notched	20	FPC	0.5 mm	0.02 in	Liquid Crystal Polymer (LCP)	4	Liquid Crystal Polymer (LCP)	Backlock Flip Lock	Copper Alloy	50 V	Contacts Top and Bottom	0.3 mm	Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
