FS25R12W1T7PB11BPSA1

Active

Infineon Technologies

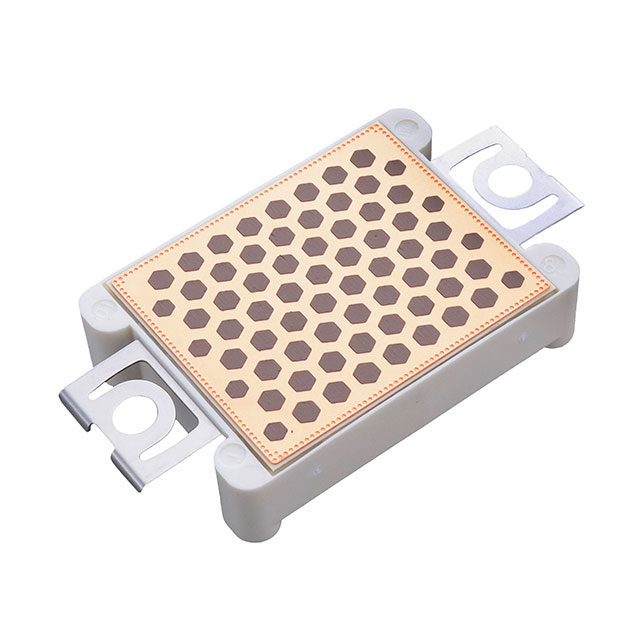

THE FS25R12W1T7P_B11 IS A SIXPACK IGBT7 - T7 MODULE IN A EASYPACK™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 25 A WITH THERMAL INTERFACE MATERIAL.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FS25R12W1T7PB11BPSA1

Active

Infineon Technologies

THE FS25R12W1T7P_B11 IS A SIXPACK IGBT7 - T7 MODULE IN A EASYPACK™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 25 A WITH THERMAL INTERFACE MATERIAL.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FS25R12W1T7PB11BPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	25 A
Current - Collector Cutoff (Max) [Max]	5.6 µA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	4.77 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Power - Max [Max]	20 mW
Supplier Device Package	Module
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FS25R12 Series

Part	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Package / Case	Input	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max) [Max]	Configuration	IGBT Type
Infineon Technologies FS25R12KE3GBOSA1	145 W	40 A	Module	Module	Standard	1.8 nF	1200 V	125 °C	-40 °C	Chassis Mount	2.15 V	5 mA	Full Bridge
Infineon Technologies FS25R12W1T7PB11BPSA1	20 mW	25 A	Module	Module	Standard	4.77 nF	1200 V	175 °C	-40 C	Chassis Mount		5.6 µA	Three Phase Inverter	Trench Field Stop
Infineon Technologies FS25R12W1T7B11BOMA1	20 mW	25 A	AG-EASY1B	Module	Standard	4.77 nF	1200 V	175 °C	-40 C	Chassis Mount	1.6 V	5.6 µA	Three Phase Inverter	Trench Field Stop
Infineon Technologies FS25R12W1T7BOMA1		25 A	AG-EASY1B	Module	Standard	4.77 nF	1200 V	175 °C	-40 C	Chassis Mount		5.6 µA	Three Phase Inverter	Trench Field Stop
Infineon Technologies FS25R12W1T4B11BOMA1	205 W	45 A	Module	Module	Standard	1.45 nF	1200 V			Chassis Mount	2.25 V	1 mA	Three Phase Inverter	Trench Field Stop

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 33.35
		10	$ 32.80

Description

General part information

FS25R12 Series

EasyPACK™1B 1200 V, 25 A sixpackIGBT modulewithTRENCHSTOP™ IGBT7, Emitter Controlled 7 diode, NTC,PressFIT contact technologyandThermal Interface Material.
