Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-53L4A3 | X-NUCLEO-53L4A3 Series |
|---|---|---|
| - | - | |
| Contents | Accessories, Board(s) | Accessories, Board(s) |
| Function | Light, 3D Time-of-Flight (ToF) | Light, 3D Time-of-Flight (ToF) |
| Interconnect System | Arduino R3 Shield | Arduino R3 Shield |
| Platform | Nucleo | Nucleo |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Type | Sensor | Sensor |
| Utilized IC / Part | VL53L4ED | VL53L4ED |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
X-NUCLEO-53L4A3 Series
Time-of-Flight high-accuracy proximity sensor expansion board based on the VL53L4ED for STM32 Nucleo
| Part | Type | Function | Suggested Programming Environment | Interconnect System | Utilized IC / Part | Contents | Platform |
|---|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-53L4A3 | Sensor | Light, 3D Time-of-Flight (ToF) | STM32Cube | Arduino R3 Shield | VL53L4ED | Accessories, Board(s) | Nucleo |
STMicroelectronics X-NUCLEO-53L4A3 | |||||||
STMicroelectronics X-NUCLEO-53L4A3 |
Description
General part information
X-NUCLEO-53L4A3 Series

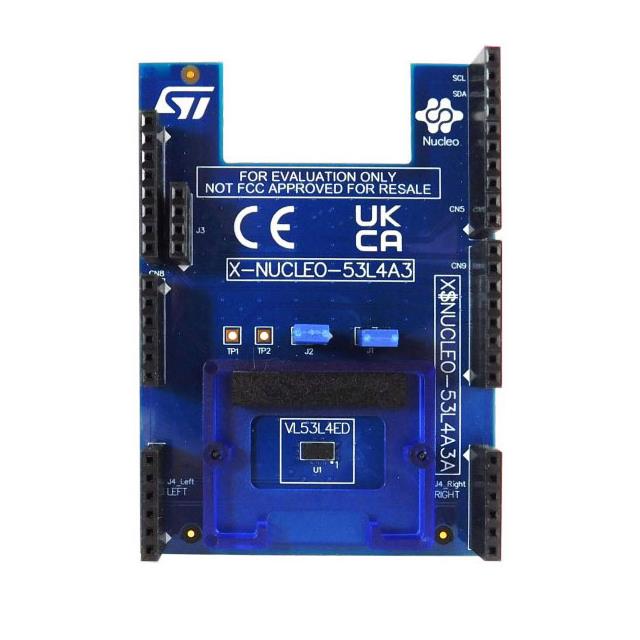

The X-NUCLEO-53L4A3 is an expansion board for any STM32 Nucleo board equipped with the Arduino R3 connectors. It provides a complete evaluation kit that allows you to learn, evaluate, and develop applications using the VL53L4ED Time-of-Flight high-accuracy proximity sensor with extended temperature capability.
The expansion board is delivered with a cover glass holder in which you can fit three different spacers of 0.25, 0.5, and 1 mm height below the cover glass to simulate various air gaps. A small oval cover glass fitting the sensor is included.
Several ST expansion boards can be stacked through the Arduino connectors, which allow, for example, the development of VL53L4ED applications with Bluetooth or Wi-Fi interfaces.
