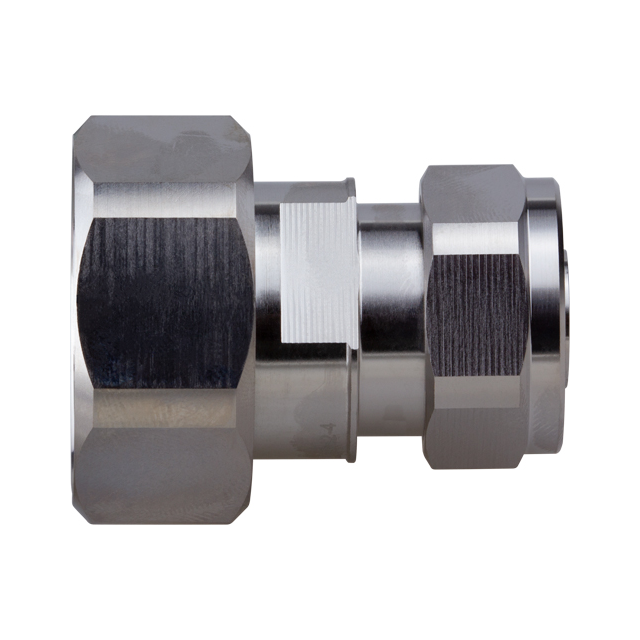

RFD-1682-4

Active

RF Industries

COAX ADAPT 7/16 DIN TO 4.1/9.5

Search across all available documentation for this part.

Active

RF Industries

COAX ADAPT 7/16 DIN TO 4.1/9.5

Technical Specifications

Parameters and characteristics for this part

Specification	RFD-1682-4

Adapter Series	, 0.4375 DIN
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	4.1/9.5 Plug, Male Pin
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

COAX ADAPT 7/16 DIN TO 4.1/9.5

Part	Adapter Series	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Dielectric Material	Convert To (Adapter End)	Body Finish	Mating Cycles	Insertion Loss	Center Gender	Frequency - Max [Max]	Style	Mounting Type	Adapter Type	Body Material	Center Contact Material	Center Contact Plating	Impedance
RF Industries RFD-1682-4	, 0.4375 DIN	4.1/9.5 Plug, Male Pin	-65 ░C	165 °C	Between Series	Polytetrafluoroethylene (PTFE)	7/16 Plug, Male Pin	White Bronze	500	0.05 dB	Male to Male	3 GHz	Straight	Free Hanging (In-Line)	Plug to Plug	Brass	Phosphor Bronze	Silver	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.1/9.5 Plug, Male Pin To 7/16 Plug, Male Pin 50 Ohms
