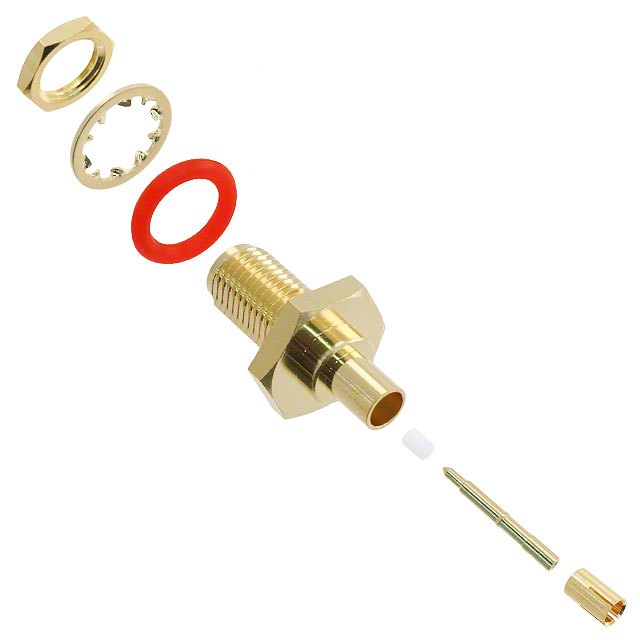

132286RP

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132286RP

Body Finish	Gold
Body Material	Brass
Cable Group	178B, RG-178, 196A, M17/93-RG178, 196, 178A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Sleeve, 1 Ferrule, 1 Contact, 1 Gasket, 1 Nut, 1 Insulator, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Frequency - Max [Max]	Body Finish	Contact Termination	Includes	Number of Ports	Mounting Feature	Cable Group	Connector Style	Connector Type	Mating Cycles	Voltage Rating	Housing Color	Center Contact Plating	Impedance	Center Contact Material	Dielectric Material	Body Material
Amphenol RF 132286RP	-65 ░C	165 °C	Crimp	12.4 GHz	Gold	Solder	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Insulator 1 Lockwasher 1 Nut 1 Sleeve	1	Bulkhead - Front Side Nut	178A 178B 196 196A M17/93-RG178 RG-178	RP-SMA	Jack Male Pin	500	375 V	Gold	Gold	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Jack, Male Pin 50 Ohms Panel Mount Solder
