H1AXH-1036G
ActiveAssmann WSW Components
IDC CBL - HHSC10H/AE10G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H1AXH-1036G
ActiveAssmann WSW Components
IDC CBL - HHSC10H/AE10G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H1AXH-1036G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.52 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.24 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.84 | |||
| 2500 | $ 0.79 | |||
Description
General part information
H1AXH-10 Series

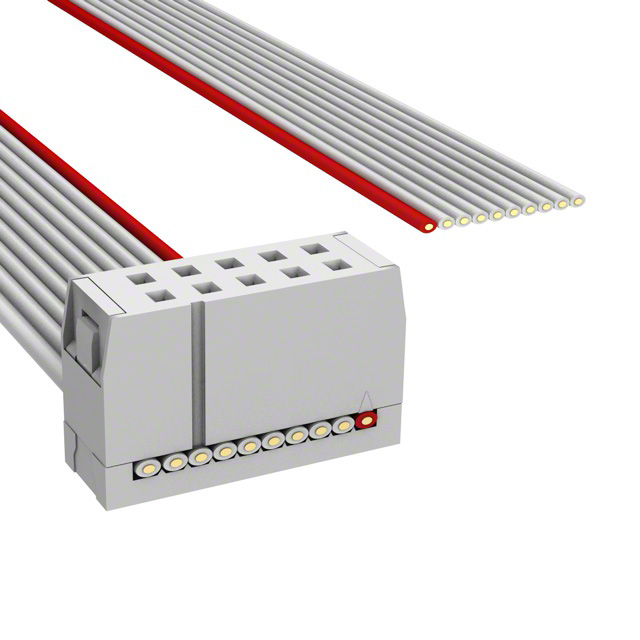

10 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
