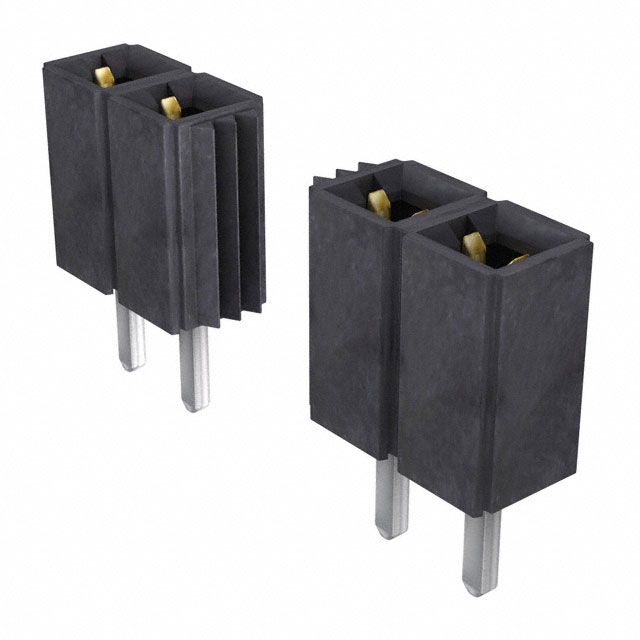

SLW-140-01-S-S

Active

Samtec Inc.

CONN RCPT 40POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSLW Single Row, Through Hole Footprint Datasheet

SLW-140-01-S-S

Active

Samtec Inc.

CONN RCPT 40POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsSLW Single Row, Through Hole Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SLW-140-01-S-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Polyester, Glass Filled
Mated Stacking Heights	6.09 mm
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

SLW-127 Series

Headers & Wire Housings .100" Tiger Buy Low Profile Socket Strip

...

Part	Contact Finish - Post	Number of Positions Loaded	Insulation Color	Insulation Height	Insulation Height	Contact Shape	Number of Positions	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Fastening Type	Number of Rows	Mounting Type	Contact Material	Insulation Material	Contact Length - Post	Contact Length - Post	Termination	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Voltage Rating	Number of Positions
Samtec Inc. SLW-136-01-T-S	Tin	All	Black	4.57 mm	0.18 "	Square	36	0.1 in	2.54 mm	6.09 mm	Push-Pull	1	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	105 ░C	-55 °C	Receptacle
Samtec Inc. SLW-112-01-G-D	Gold	All	Black	4.57 mm	0.18 "	Square	24	0.1 in	2.54 mm	6.09 mm	Push-Pull	2	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	125 °C	-55 °C	Receptacle	2.54 mm	0.1 in	Gold	0.51 µm	20 µin	3 µin	0.076 µm
Samtec Inc. SLW-125-01-L-D	Tin	All	Black	4.57 mm	0.18 "	Square	50	0.1 in	2.54 mm		Push-Pull	2	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	105 ░C	-55 °C	Receptacle	2.54 mm	0.1 in	Gold	0.25 çm	10 çin			5.5 A	406 VAC
Samtec Inc. SLW-140-01-S-S	Tin	All	Black	4.57 mm	0.18 "	Square	40	0.1 in	2.54 mm	6.09 mm	Push-Pull	1	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	125 °C	-55 °C	Receptacle			Gold	0.76 Ám	30 Áin
Samtec Inc. SLW-118-01-G-D	Gold	All	Black	4.57 mm	0.18 "	Square	36	0.1 in	2.54 mm	6.09 mm	Push-Pull	2	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	125 °C	-55 °C	Receptacle	2.54 mm	0.1 in	Gold	0.51 µm	20 µin	3 µin	0.076 µm
Samtec Inc. SLW-136-01-G-D	Gold	All	Black	4.57 mm	0.18 "	Square	72	0.1 in	2.54 mm	6.09 mm	Push-Pull	2	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	125 °C	-55 °C	Receptacle	2.54 mm	0.1 in	Gold	0.51 µm	20 µin	3 µin	0.076 µm
Samtec Inc. SLW-109-01-S-D	Tin	All	Black	4.57 mm	0.18 "	Square	18	0.1 in	2.54 mm	6.09 mm	Push-Pull	2	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	125 °C	-55 °C	Receptacle	2.54 mm	0.1 in	Gold	0.76 Ám	30 Áin
Samtec Inc. SLW-124-01-F-D	Tin	All	Black	4.57 mm	0.18 "	Square	48	0.1 in	2.54 mm		Push-Pull	2	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	105 ░C	-55 °C	Receptacle	2.54 mm	0.1 in	Gold	0.076 µm	3 µin			5.5 A	406 VAC
Samtec Inc. SLW-108-01-S-D	Tin	All	Black	4.57 mm	0.18 "	Square		0.1 in	2.54 mm	6.09 mm	Push-Pull	2	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	125 °C	-55 °C	Receptacle	2.54 mm	0.1 in	Gold	0.76 Ám	30 Áin					16
Samtec Inc. SLW-112-01-F-S	Tin	All	Black	4.57 mm	0.18 "	Square	12	0.1 in	2.54 mm		Push-Pull	1	Through Hole	Phosphor Bronze	Polyester Glass Filled	2.92 mm	0.115 in	Solder	Forked	105 ░C	-55 °C	Receptacle			Gold	0.076 µm	3 µin			5.5 A	406 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.99
		10	$ 7.19
		100	$ 6.43
		500	$ 5.39
		1000	$ 4.76

Description

General part information

SLW-127 Series

Headers & Wire Housings .100" Tiger Buy Low Profile Socket Strip

Documents

Technical documentation and resources

SLW Single Row, Through Hole Footprint

Datasheet
