CMLB063T-R68MS

Active

Delta Electronics/Cyntec

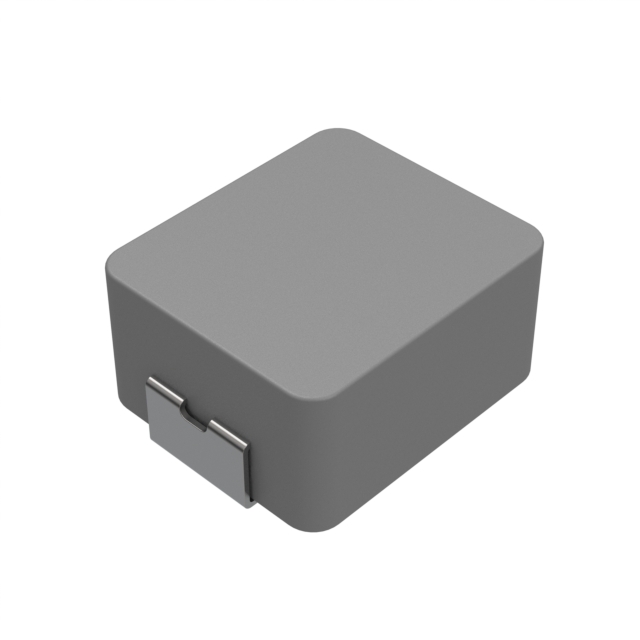

FIXED IND 680NH 16A 5.3MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMLB063T-R68MS

Active

Delta Electronics/Cyntec

FIXED IND 680NH 16A 5.3MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.72

Description

General part information

CMLB063T Series

680 nH Shielded Inductor 16 A 5.3mOhm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMLB063T-R68MS	CMLB063T Series

Current - Saturation (Isat)	15 A	2 - 48 A
Current Rating (Amps)	16 A	2.1 - 40 A
DC Resistance (DCR)	-	0.99 - 200 mOhm
DC Resistance (DCR) [Max]	5.3 mOhm	3.3 - 284 mOhm
Height - Seated (Max)	3 mm	3 mm
Height - Seated (Max) [Max]	0.118 in	0.118 in
Inductance	0.68 µH	0.68 - 820 nH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Metal	Metal
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Shielded	Shielded
Size / Dimension [x]	6.95 mm	6.95 mm
Size / Dimension [x]	0.274 "	0.274 "
Size / Dimension [y]	6.6 mm	6.6 mm
Size / Dimension [y]	0.26 "	0.26 "
Tolerance	20 %	20 %

CMLB063T Series

FIXED IND 470NH 18A 4.1MOHM SMD

Part	Package / Case	Tolerance	Shielding	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	DC Resistance (DCR) [Max]	Material - Core	Inductance Frequency - Test	Height - Seated (Max)	Height - Seated (Max) [Max]	Current Rating (Amps)	DC Resistance (DCR)
Delta Electronics/Cyntec CMLB063T-R47MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount	17.8 A	-55 °C	125 °C	470 nH	4.1 mOhm	Metal	100 kHz	3 mm	0.118 in	18 A
Delta Electronics/Cyntec CMLB063T-R68MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount	15 A	-55 °C	125 °C	0.68 µH	5.3 mOhm	Metal	100 kHz	3 mm	0.118 in	16 A
Delta Electronics/Cyntec CMLB063T-R82MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount	14 A	-55 °C	125 °C	820 nH	6 mOhm	Metal	100 kHz	3 mm	0.118 in	14 A
Delta Electronics/Cyntec CMLB063T-R33MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount	22 A	-55 °C	125 °C	330 nH	3.3 mOhm	Metal	100 kHz	3 mm	0.118 in	22 A
Delta Electronics/Cyntec CMLB063T-1R5MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount		-55 °C	125 °C	1.5 µH	10.5 mOhm	Metal	100 kHz	3 mm	0.118 in	11 A
Delta Electronics/Cyntec CMLB063T-1R2MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount	12.5 A	-55 °C	125 °C	1.2 µH	8.6 mOhm	Metal	100 kHz	3 mm	0.118 in	11.7 A
Delta Electronics/Cyntec CMLB063T-6R8MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount	5 A	-55 °C	125 °C	6.8 µH		Metal	100 kHz	3 mm	0.118 in	4.7 A
Delta Electronics/Cyntec CMLB063T-100MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount	4.9 A	-55 °C	125 °C	10 µH	68 mOhm	Metal	100 kHz	3 mm	0.118 in	4 A
Delta Electronics/Cyntec CMLB063T-3R3MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount	8.5 A	-55 °C	125 °C	3.3 µH		Metal	100 kHz	3 mm	0.118 in	7.2 A
Delta Electronics/Cyntec CMLB063T-220MS	Nonstandard	20 %	Shielded	6.95 mm	0.274 "	6.6 mm	0.26 "	Surface Mount	2.5 A	-55 °C	125 °C	22 µH		Metal	100 kHz	3 mm	0.118 in		200 mOhm
