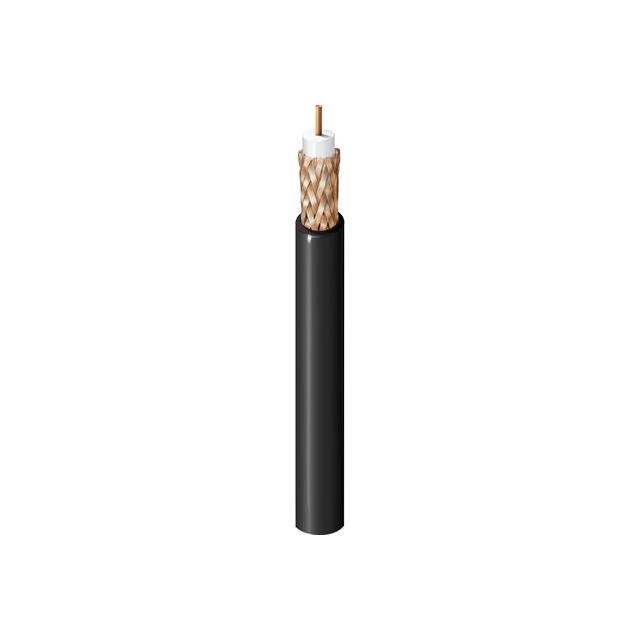

Specification	633948 877500

Cable Group	RG-6
Cable Type	Plenum, Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter	0.17 in
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Impedance	75 Ohm
Jacket (Insulation) Diameter	0.228 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC)
Jacket Color	Natural
Length	500 ft
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	CCTV
Velocity of Propagation (VoP)	83 %
Wire Gauge	18 AWG

633948 Series

Part	Shield Material	Velocity of Propagation (VoP)	Operating Temperature (Min)	Operating Temperature (Max)	Shield Coverage	Dielectric Diameter	Dielectric Material	Conductor Material	Impedance	Jacket Color	Shield Type	Cable Group	Jacket (Insulation) Material	Wire Gauge	Usage	Jacket (Insulation) Diameter	Conductor Strand	Length	Cable Type
Belden Inc. 633948 877500	Bare Copper	83 %	-20 °C	75 °C	95 %	0.17 in	Foam Fluorinated Ethylene Propylene (FFEP)	Bare Copper	75 Ohm	Natural	Braid	RG-6	Low Smoke Poly-Vinyl Chloride (LSPVC)	18 AWG	CCTV	0.228 in	Solid	500 ft	Coaxial Plenum
Belden Inc. 633948 0071000	Bare Copper	83 %	-20 °C	75 °C	95 %	0.17 in	Foam Fluorinated Ethylene Propylene (FFEP)	Bare Copper	75 Ohm	Violet	Braid	RG-6	Low Smoke Poly-Vinyl Chloride (LSPVC)	18 AWG	CCTV	0.228 in	Solid	1000 ft	Coaxial Plenum
Belden Inc. 633948 877U500	Bare Copper	83 %	-20 °C	75 °C	95 %	0.17 in	Foam Fluorinated Ethylene Propylene (FFEP)	Bare Copper	75 Ohm	Natural	Braid	RG-6	Low Smoke Poly-Vinyl Chloride (LSPVC)	18 AWG	CCTV	0.228 in	Solid	500 ft	Coaxial Plenum
Belden Inc. 633948 0041000	Bare Copper	83 %	-20 °C	75 °C	95 %	0.17 in	Foam Fluorinated Ethylene Propylene (FFEP)	Bare Copper	75 Ohm	Yellow	Braid	RG-6	Low Smoke Poly-Vinyl Chloride (LSPVC)	18 AWG	CCTV	0.228 in	Solid	1000 ft	Coaxial Plenum
Belden Inc. 633948 008U1000	Bare Copper	83 %	-20 °C	75 °C	95 %	0.17 in	Foam Fluorinated Ethylene Propylene (FFEP)	Bare Copper	75 Ohm	Gray	Braid	RG-6	Low Smoke Poly-Vinyl Chloride (LSPVC)	18 AWG	CCTV	0.228 in	Solid	1000 ft	Coaxial Plenum
