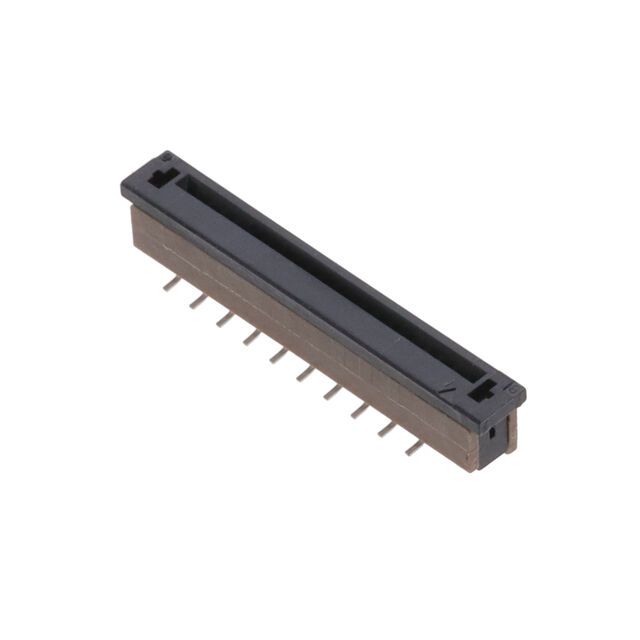

SFW20S-2STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC VERT 20POS 1MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
SFW20S-2STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC VERT 20POS 1MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW20S-2STE1LF |
|---|---|
| Actuator Material | Thermoplastic, Glass Filled |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.33 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 5.3 mm |
| Height Above Board | 0.209 in |
| Housing Color | Brown |
| Housing Material | Thermoplastic, Glass Filled |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.82 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.82 | ||
| 10 | $ 0.63 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.40 | |||
| Tape & Reel (TR) | 1000 | $ 0.37 | ||
| 2000 | $ 0.35 | |||
| 3000 | $ 0.33 | |||
| 5000 | $ 0.32 | |||
| 7000 | $ 0.31 | |||
| 10000 | $ 0.29 | |||
| 25000 | $ 0.27 | |||
Description
General part information
SFW20S Series
20 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
