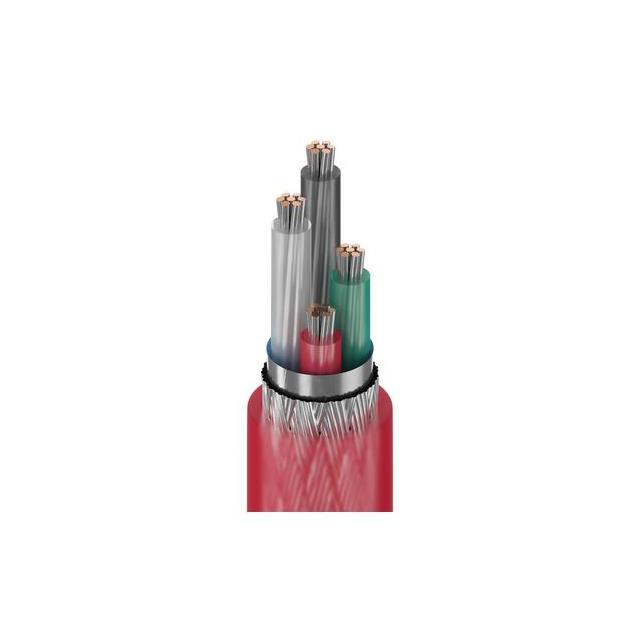

Specification	83804 0021000

Cable Type	Conductor, Multi
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	20 AWG
Jacket (Insulation) Diameter	0.359 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Number of Conductors	4
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-70 °C
Ratings	Style, UL, CMP
Shield Coverage	85%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	12 AWG

83804 Series

Part	Conductor Insulation	Wire Gauge	Jacket (Insulation) Diameter	Jacket Color	Operating Temperature (Min)	Operating Temperature (Max)	Voltage	Cable Type	Length	Conductor Material	Jacket (Insulation) Material	Usage	Jacket (Insulation) Thickness	Number of Conductors	Shield Type	Ratings	Conductor Strand Count	Conductor Strand Gauge	Shield Material	Shield Coverage
Belden Inc. 83804 0021000	Fluorinated Ethylene-Propylene (FEP)	12 AWG	0.359 in	Red	-70 °C	200 °C	300 V	Conductor Multi	1000 ft	Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	Alarm Safety	0.017 in	4	Braid Foil	CMP Style UL	7 Strands	20 AWG	Aluminum Copper Tinned	100% 85%
Belden Inc. 83804 002500	Fluorinated Ethylene-Propylene (FEP)	12 AWG	0.359 in	Red	-70 °C	200 °C	300 V	Conductor Multi	500 ft	Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	Alarm Safety	0.017 in	4	Braid Foil	CMP Style UL	7 Strands	20 AWG	Aluminum Copper Tinned	100% 85%
