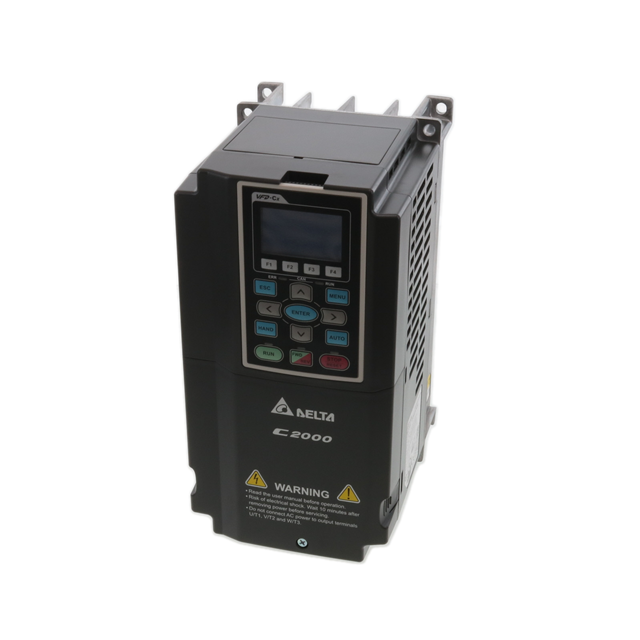

VFD022C43A

Delta Electronics/Industrial Automation

VFD-C2000, 3HP 460V, FOC & TRQ D

Search across all available documentation for this part.

Delta Electronics/Industrial Automation

VFD-C2000, 3HP 460V, FOC & TRQ D

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VFD022C43A	VFD022 Series

Current - Output	6 A	4.3 - 11 A
Interface	CAN	CAN, RS-485
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature	-	-10 °C
Operating Temperature	-	40 °C
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Voltage - Supply	460 VAC	230 - 575 VAC
Wattage - Load	2.2 kW	2.2 kW

VFD-C2000, 3HP 460V, FOC & TRQ D

Part	Mounting Type	Current - Output	Wattage - Load	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Supply	Interface	Operating Temperature [Min]	Operating Temperature [Max]
Delta Electronics/Industrial Automation VFD022C43A	Chassis Mount	6 A	2.2 kW	-10 °C	50 °C	460 VAC	CAN
Delta Electronics/Industrial Automation VFD022CP23A-21	Chassis Mount	10 A	2.2 kW	-10 °C	50 °C	230 VAC	CAN
Delta Electronics/Industrial Automation VFD022C53A-21	Chassis Mount	4.3 A	2.2 kW	-10 °C	50 °C	575 VAC	CAN
Delta Electronics/Industrial Automation VFD022S43U	Chassis Mount	5.5 A	2.2 kW			460 VAC	RS-485	-10 °C	40 °C
Delta Electronics/Industrial Automation VFD022C23A	Chassis Mount	11 A	2.2 kW	-10 °C	50 °C	230 VAC	CAN
Delta Electronics/Industrial Automation VFD022CP43B-21	Chassis Mount	5.5 A	2.2 kW	-10 °C	50 °C	460 VAC	CAN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 548.31

General part information

VFD-C2000, 3HP 460V, FOC & TRQ D

Technical documentation and resources

No documents available
