PP-063045-OM
ActiveCUI Devices

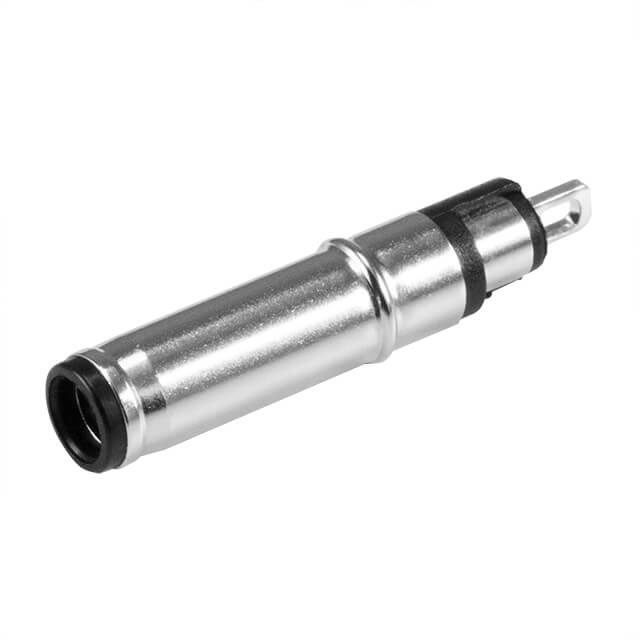

POWER PLUG, 0.6 X 2.9 X 4.5 MM,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PP-063045-OM
ActiveCUI Devices
POWER PLUG, 0.6 X 2.9 X 4.5 MM,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PP-063045-OM |
|---|---|
| Actual Diameter [diameter] | 0.177 in, 0.024 in |
| Actual Diameter [diameter] | 4.5 mm, 0.6 mm |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Steel |
| Contact Material - Plating [custom] | Gold, Nickel |
| Gender | Male |
| Industry Recognized Mating Diameter [diameter] | 0.024 in, 0.177 in, 0.118 " |
| Industry Recognized Mating Diameter [diameter] | 0.6 mm, 4.5 mm, 3 mm |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-2 |
| Mating Length/Depth [x] | 0.476 " |
| Mating Length/Depth [x] | 12.1 mm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder Eyelet |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.03 | |
| 10 | $ 1.76 | |||
| 25 | $ 1.69 | |||
| 50 | $ 1.65 | |||
| 100 | $ 1.58 | |||
| 250 | $ 1.43 | |||
| 500 | $ 1.31 | |||
| 1000 | $ 1.13 | |||
| 3000 | $ 1.05 | |||
Description
General part information
PP-063045 Series
Power Barrel Connector Plug 0.60mm ID (0.024"), 3.00mm ID (0.118"), 4.50mm OD (0.177") Free Hanging (In-Line)
