LP38512MRX-ADJ/NOPB
Active1.5-A, ADJUSTABLE ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH LOW NOISE & ENABLE 8-SO POWERPAD -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
LP38512MRX-ADJ/NOPB
Active1.5-A, ADJUSTABLE ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH LOW NOISE & ENABLE 8-SO POWERPAD -40 TO 125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LP38512MRX-ADJ/NOPB |
|---|---|
| Control Features | Enable |
| Current - Output | 1.5 A |
| Current - Quiescent (Iq) | 7.5 mA |
| Current - Supply (Max) [Max] | 14 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

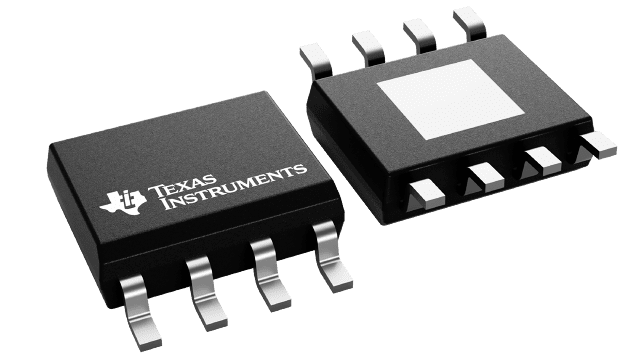

| Package / Case | 8-PowerSOIC |
| Package / Case [custom] | 3.9 mm |
| Package / Case [custom] | 0.154 in |
| Protection Features | Over Current, Short Circuit, Over Temperature |
| PSRR [Max] | 73 dB |
| PSRR [Min] | 70 dB |
| Supplier Device Package | 8-SO PowerPad |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Output (Max) [Max] | 4.5 V |
| Voltage - Output (Min/Fixed) | 0.5 V |
| Voltage Dropout (Max) | 0.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
LP38512-ADJ Series
1.5-A, adjustable ultra-low-dropout voltage regulator with low noise & enable
| Part | Current - Supply (Max) [Max] | Protection Features | Package / Case [custom] | Package / Case | Package / Case [custom] | Supplier Device Package | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output (Min/Fixed) | Number of Regulators | Operating Temperature [Max] | Operating Temperature [Min] | PSRR [Min] | PSRR [Max] | Output Type | Current - Quiescent (Iq) | Output Configuration | Voltage - Output (Max) [Max] | Control Features | Voltage Dropout (Max) | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LP38512MRX-ADJ/NOPBThe LP38512-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38512-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38512-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 μF ceramic capacitors, and has an adjustable output voltage. The LP38512-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations.
The LP38512-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38512-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38512-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 μF ceramic capacitors, and has an adjustable output voltage. The LP38512-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations. | 14 mA | Over Current, Over Temperature, Short Circuit | 3.9 mm | 8-PowerSOIC | 0.154 in | 8-SO PowerPad | 5.5 V | Surface Mount | 0.5 V | 1 | 125 °C | -40 °C | 70 dB | 73 dB | Adjustable | 7.5 mA | Positive | 4.5 V | Enable | 0.3 V | 1.5 A |
Description
General part information
LP38512-ADJ Series
The LP38512-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38512-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38512-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 μF ceramic capacitors, and has an adjustable output voltage. The LP38512-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations.
The LP38512-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38512-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38512-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 μF ceramic capacitors, and has an adjustable output voltage. The LP38512-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations.
