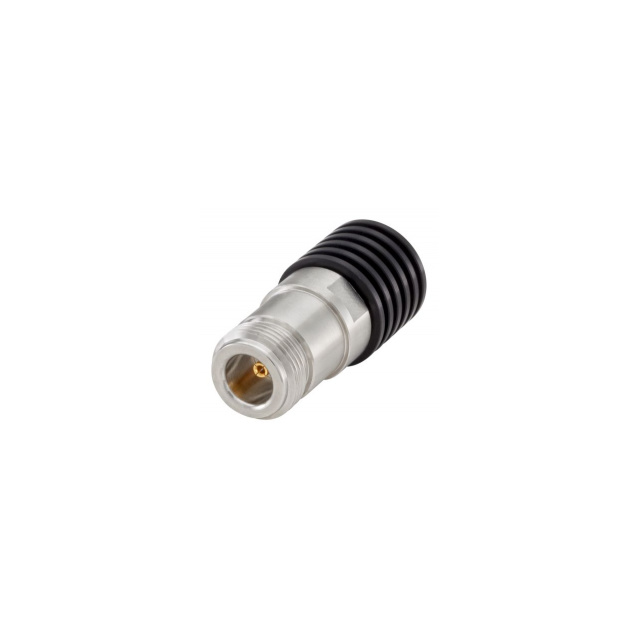

53K15R-005N3

Active

Rosenberger

N TYPE TERMINATOR

Search across all available documentation for this part.

Active

Rosenberger

N TYPE TERMINATOR

Technical Specifications

Parameters and characteristics for this part

Specification	53K15R-005N3

Body Finish	White Bronze
Body Material	Brass
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Connector Style	Contact Finish	Connector Type	Dielectric Material	Body Finish	Body Material	Mounting Type	Contact Material	Impedance	Frequency - Max [Max]
Rosenberger 53K15R-005N3	N Type	Gold	Female Socket Jack	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Cap Free Hanging	Beryllium Copper	50 Ohms	3 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	3	$ 272.38

General part information

Terminator Coax Connector Jack, Female Socket N Type 50 Ohms
