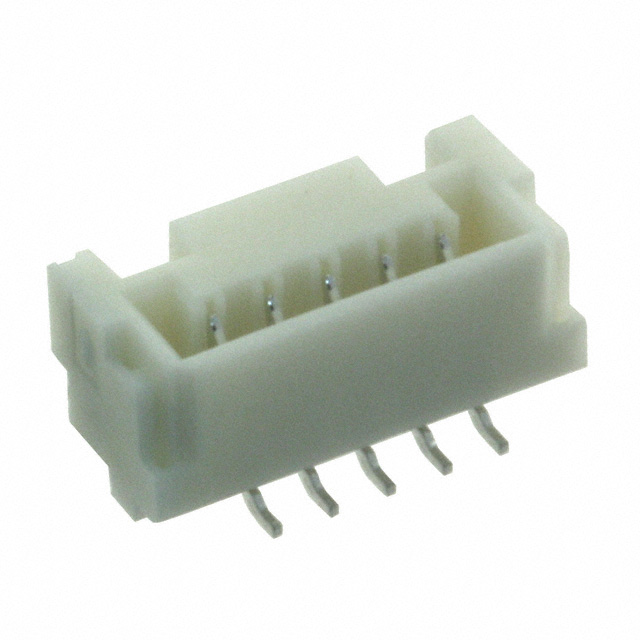

Specification	BM05B-GVHS-TB(LF)(SN)

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating	1 A
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.159 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Height	8.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V

BM05B-GV Series

Part	Current Rating	Voltage Rating	Shrouding	Material Flammability Rating	Fastening Type	Insulation Height	Insulation Material	Termination	Contact Type	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Style	Number of Positions	Number of Rows	Insulation Color	Mounting Type	Features	Connector Type	Contact Material	Pitch - Mating	Contact Finish - Mating	Contact Finish - Post	Mated Stacking Height
JST Sales America Inc. BM05B-GVHS-TB(LF)(SN)	1 A	50 V	Shrouded - 4 Wall	UL94 V-0	Latch Holder	0.159 in	Nylon 6T Polyamide (PA6T)	Solder	Outer Shroud Contact	All	85 °C	-25 °C	Rectangular	Board Cable/Wire	5	1	Natural	Surface Mount	Solder Retention	Header	Phosphor Bronze	0.049 in	Tin	Tin	8.8 mm
