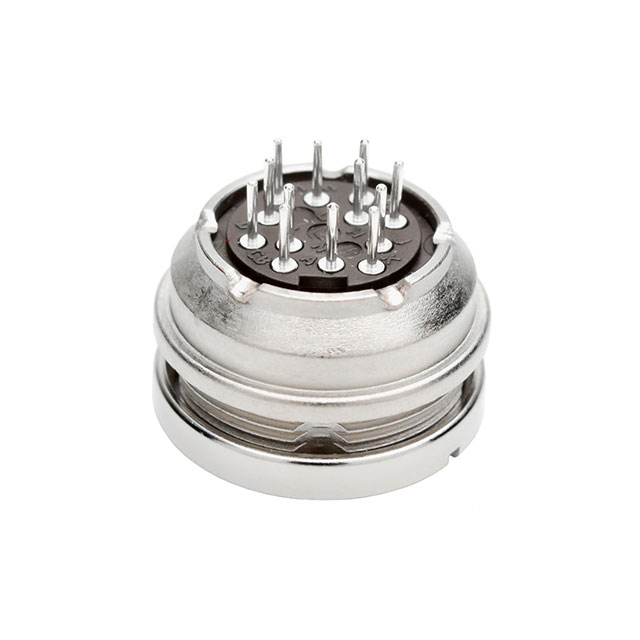

Specification	C091 61G012 110 2

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating	3 A
Fastening Type	Threaded
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP65, IP67
Mounting Type	Panel Mount, Through Hole
Number of Positions	12
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-12
Shielding	Shielded
Termination	Solder
Voltage Rating	250 V

C091 61G012 Series

Part	Shell Material	Shell Finish	Voltage Rating	Number of Positions	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Color	Mounting Type	Shell Size - Insert	Shielding	Termination	Contact Finish - Mating	Current Rating	Orientation	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type
Amphenol Tuchel Industrial C091 61G012 110 2	Die Cast	Nickel	250 V	12	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	Silver	Panel Mount Through Hole	M16-12	Shielded	Solder	Silver	3 A	Keyed	Metal	100 °C	-40 °C	Female Sockets Receptacle
Amphenol Tuchel Industrial C091 61G012 210 2	Die Cast	Nickel	250 V	12	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	Silver	Panel Mount Through Hole	M16-12	Shielded	Solder	Gold	3 A	Keyed	Metal	100 °C	-40 °C	Female Sockets Receptacle
