50M025045G004

Active

Essentra Access Solutions

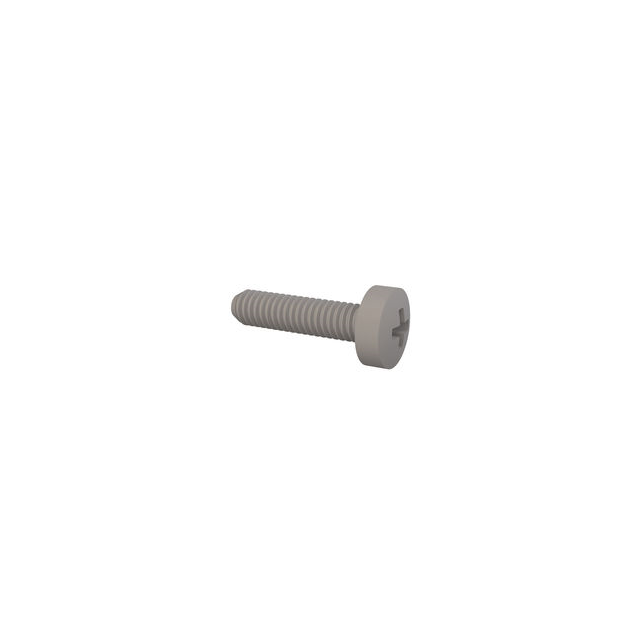

FILLISTER PHILLIPS SCREW, M2.5 X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50M025045G004

Active

Essentra Access Solutions

FILLISTER PHILLIPS SCREW, M2.5 X

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50M025045G004

Drive Type	Phillips
Head Diameter [diameter]	0.197 "
Head Diameter [diameter]	5 mm
Head Height [z]	2 mm
Head Height [z]	0.079 in
Length - Below Head	0.157 in
Length - Below Head	4 mm
Length - Overall [x]	6 mm
Length - Overall [x]	0.236 in
Material	Nylon
Screw Head Type	Pan Head
Thread Size	M2.5x0.45
Type	Machine Screw

50M025045 Series

Part	Length - Overall [x]	Length - Overall [x]	Material	Screw Head Type	Head Height [z]	Head Height [z]	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Type	Drive Type	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head	Length - Below Head	Length - Below Head [custom]	Length - Below Head [custom]
Essentra Access Solutions 50M025045H004	4 mm	0.157 in	Nylon	Flat Head	1.5 mm	0.059 "	5.5 mm	0.217 "	M2.5x0.45	Machine Screw	Slotted
Essentra Access Solutions 50M025045H025	25 mm	0.984 in	Nylon	Flat Head	1.5 mm	0.059 "	5.5 mm	0.217 "	M2.5x0.45	Machine Screw	Slotted	23.5 mm	0.925 in
Essentra Access Solutions 50M025045H006	6 mm	0.236 in	Nylon	Flat Head	1.5 mm	0.059 "	5.5 mm	0.217 "	M2.5x0.45	Machine Screw	Slotted	4.5 mm	0.177 "
Essentra Access Solutions 50M025045G004	6 mm	0.236 in	Nylon	Pan Head	2 mm	0.079 in	5 mm	0.197 "	M2.5x0.45	Machine Screw	Phillips			0.157 in	4 mm
Essentra Access Solutions 50M025045I004	4 mm	0.157 in	Nylon	Flat Head	1.5 mm	0.059 "	5.5 mm	0.217 "	M2.5x0.45	Machine Screw	Phillips
Essentra Access Solutions 50M025045P008	10.1 mm	0.398 "	Nylon	Pan Head			5 mm	0.197 "	M2.5x0.45	Machine Screw	Phillips					8 mm	0.315 in
Essentra Access Solutions 50M025045P005	7.1 mm	0.28 in	Nylon	Pan Head			5 mm	0.197 "	M2.5x0.45	Machine Screw	Phillips			0.197 in	5 mm
Essentra Access Solutions 50M025045D004	5.6 mm	0.22 in	Nylon	Cheese Head	1.6 mm	0.063 in	4.5 mm	0.177 in	M2.5x0.45	Bolt	Slotted			0.157 in	4 mm
Essentra Access Solutions 50M025045J006	8.1 mm	0.319 in	Nylon	Hex Head			4 mm	0.157 in	M2.5x0.45	Bolt	Hex Socket			0.236 in	6 mm
Essentra Access Solutions 50M025045G010	12 mm	0.472 in	Nylon	Pan Head	2 mm	0.079 in	5 mm	0.197 "	M2.5x0.45	Machine Screw	Phillips	10 mm	0.394 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.13
		10	$ 0.10
		100	$ 0.07
		1000	$ 0.06
		5000	$ 0.05

Description

General part information

50M025045 Series

M2.5x0.45 Pan Head Machine Screw Phillips Drive Nylon
