STL150N3LLH5

Obsolete

STMicroelectronics

MOSFET N-CH 30V 195A POWERFLAT

Search across all available documentation for this part.

Obsolete

STMicroelectronics

MOSFET N-CH 30V 195A POWERFLAT

Technical Specifications

Parameters and characteristics for this part

Specification	STL150N3LLH5

Current - Continuous Drain (Id) @ 25°C	195 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	40 nC
Input Capacitance (Ciss) (Max) @ Vds	5800 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

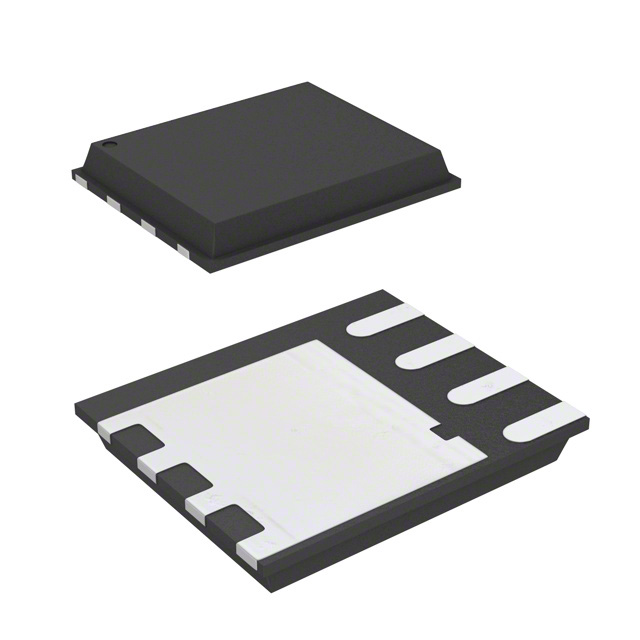

Package / Case	8-PowerVDFN
Power Dissipation (Max) [Max]	114 W
Rds On (Max) @ Id, Vgs	1.75 mOhm
Supplier Device Package	PowerFlat™ (5x6)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	22 V
Vgs(th) (Max) @ Id [Max]	2.2 V

Part	Technology	Vgs(th) (Max) @ Id [Max]	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	FET Type	Rds On (Max) @ Id, Vgs	Supplier Device Package	Package / Case	Power Dissipation (Max) [Max]	Drain to Source Voltage (Vdss)
STMicroelectronics STL150N3LLH5	MOSFET (Metal Oxide)	2.2 V	5800 pF	22 V	4.5 V 10 V	195 A	40 nC	-55 °C	150 °C	Surface Mount	N-Channel	1.75 mOhm	PowerFlat™ (5x6)	8-PowerVDFN	114 W	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 30 V 195A (Tc) 114W (Tc) Surface Mount PowerFlat™ (5x6)

Technical documentation and resources

No documents available
