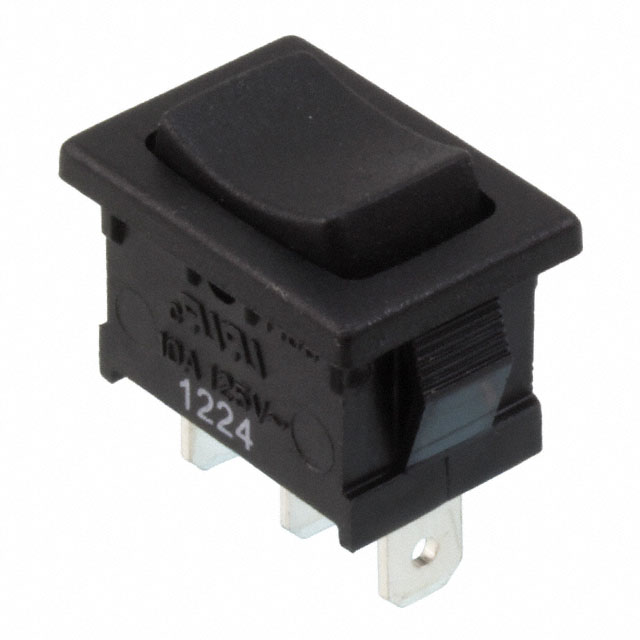

RA11531100
ActiveE-Switch
SWITCH ROCKER SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RA11531100
ActiveE-Switch
SWITCH ROCKER SPDT 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RA11531100 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 19.4 mm |
| Panel Cutout Dimensions [y] | 13.1 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.95 | |
| 10 | $ 0.84 | |||
| 200 | $ 0.73 | |||
| 1000 | $ 0.59 | |||
Description
General part information
RA11531 Series
Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Snap-In
