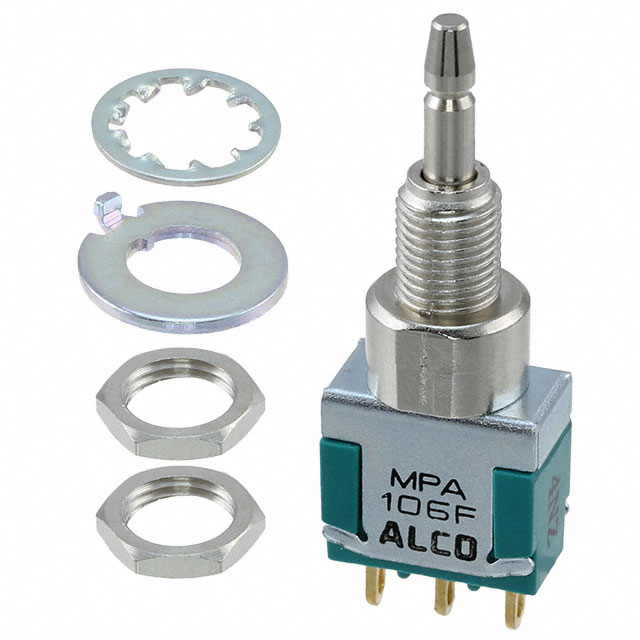

MPA106F
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
MPA106F
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON SPDT 6A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPA106F |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | SPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 50000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.52 | |
| 10 | $ 22.27 | |||
| 25 | $ 21.27 | |||
| 50 | $ 20.14 | |||
| 100 | $ 19.39 | |||
| 250 | $ 18.14 | |||
| 500 | $ 15.49 | |||
Description
General part information
MPA106 Series
Pushbutton Switch SPDT Standard Panel Mount, Rear
