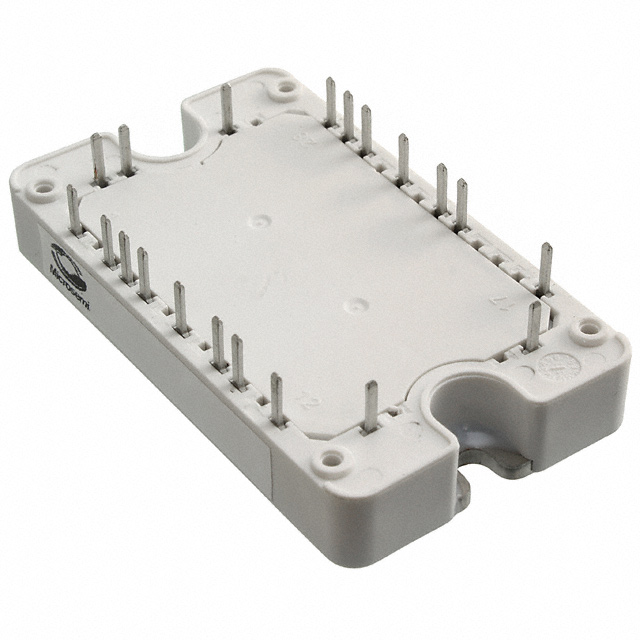

Specification	APTCV60HM45RCT3G

Configuration	Full Bridge Inverter
Current - Collector (Ic) (Max)	50 A
Current - Collector Cutoff (Max)	250 µA
IGBT Type	Trench Field Stop
Input	Single Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	3.15 nF
Mounting Type	Chassis Mount
NTC Thermistor	Yes
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-40 °C
Package / Case	SP3
Package Name	SP3
Power - Max	250 VA
Vce(on) (Max)	1.9 V
Voltage - Collector Emitter Breakdown (Max)	600 V

APTCV60 Series

600V/Secondary fast rectifier + full bridge/Si MOSFET

Part	Voltage - Collector Emitter Breakdown (Max)	Power - Max	Package / Case	Mounting Type	NTC Thermistor	Current - Collector Cutoff (Max)	Current - Collector (Ic) (Max)	Configuration	Operating Temperature (Max)	Operating Temperature (Min)	IGBT Type	Input Capacitance (Cies) @ Vce	Input	Vce(on) (Max)	Package Name
Microchip Technology APTCV60HM45RCT3G	600 V	250 VA	SP3	Chassis Mount	Yes	250 µA	50 A	Full Bridge Inverter	175 °C	-40 °C	Trench Field Stop	3.15 nF	Single Phase Bridge Rectifier	1.9 V	SP3
Microchip Technology APTCV60TLM70T3G	600 V	176 W	Module	Chassis Mount	Yes	250 µA	80 A	Three Level Inverter	175 °C	-40 °C	Trench Field Stop	3.15 nF	Standard	1.9 V	SP3
Microchip Technology APTCV60TLM24T3G	600 V	250 VA	Module	Chassis Mount	Yes	250 µA	100 A	Three Level Inverter	175 °C	-40 °C	Trench Field Stop	4.62 nF	Standard	1.9 V	SP3

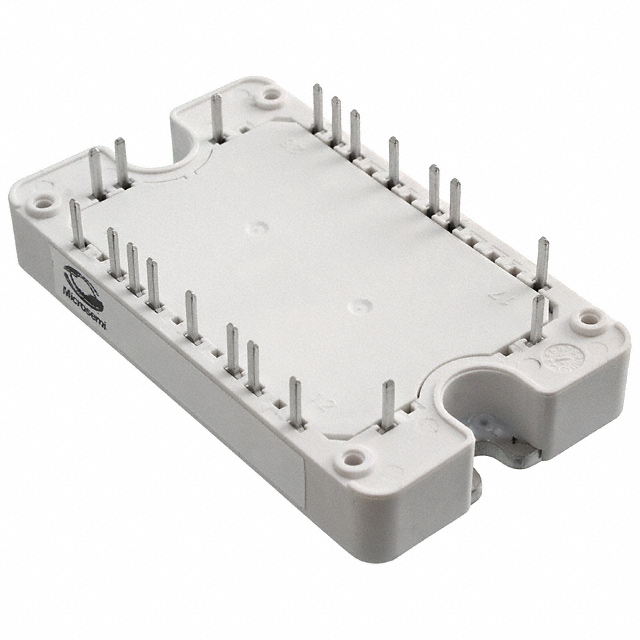

Microchip Technology APTCV60HM45RT3G	600 V	250 VA	SP3	Chassis Mount	Yes	250 µA	50 A	Full Bridge Inverter	175 °C	-40 °C	Trench Field Stop	3.15 nF	Single Phase Bridge Rectifier	1.9 V	SP3

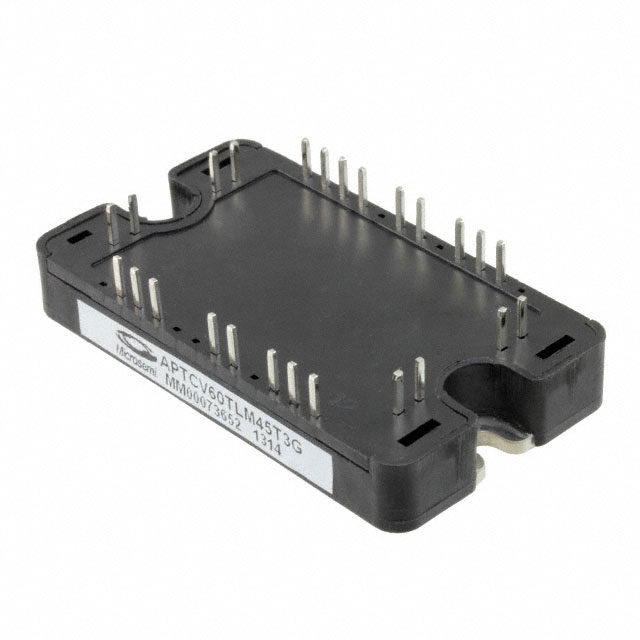

Microchip Technology APTCV60TLM45T3G	600 V	250 VA	SP3	Chassis Mount	Yes	250 µA	100 A	FET Three Level Inverter - IGBT	175 °C	-40 °C	Trench Field Stop	4.62 nF	Standard	1.9 V	SP3

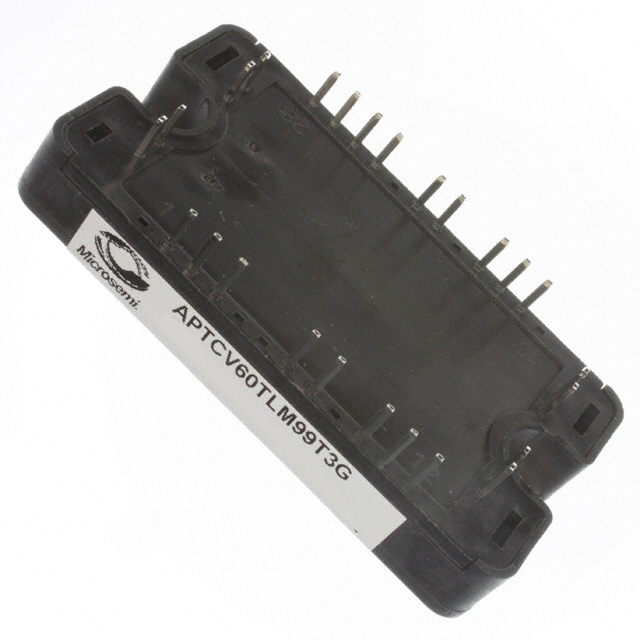

Microchip Technology APTCV60TLM99T3G	600 V	90 W	SP3	Chassis Mount	Yes	250 µA	50 A	FET Three Level Inverter - IGBT	175 °C	-40 °C	Trench Field Stop	1.6 nF	Standard	1.9 V	SP3
