345-108 Series

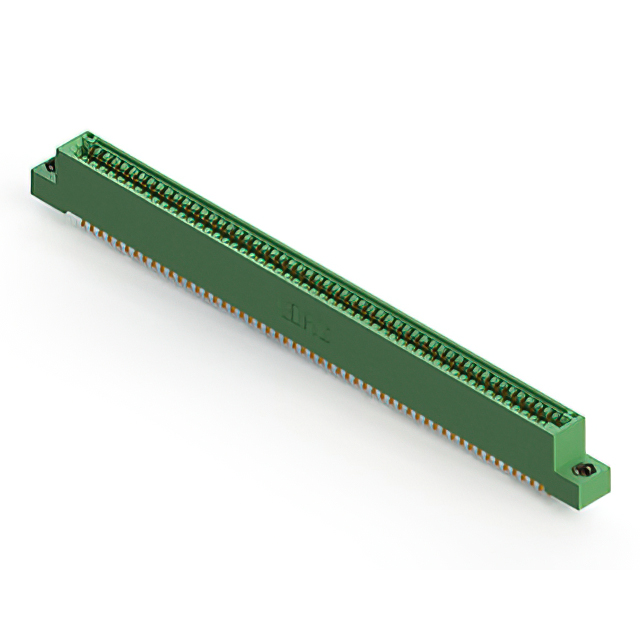

108 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	345-108-556-208

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	108, 54
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

345-108 Series

...

Part	Gender	Card Type	Read Out	Pitch	Features	Contact Finish	Number of Positions	Contact Type	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Termination	Card Thickness (Min)	Card Thickness (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Color	Mounting Type	Number of Rows	Contact Material	Termination Rows	Material - Insulation
EDAC Inc. 345-108-555-804	Female	Dual Edge Non Specified	Dual	0.1 in	Card Extender	Gold	54 108	Cantilever	0.156 in	Top Mount Opening Unthreaded	10 Ąin	Solder Eyelet(s)	0.054 in	0.07 in	-40 °C	105 °C	Green	Board Edge Straddle Mount	2	Copper Alloy	2 rows	Polyester Thermoplastic
EDAC Inc. 345-108-560-807	Female	Dual Edge Non Specified	Dual	0.1 in	Card Extender	Gold	54 108	Cantilever		M3 Threaded Insert Top Mount Opening	10 Ąin	Solder	0.054 in	0.07 in	-40 °C	105 °C	Green	Board Edge Straddle Mount	2	Copper Alloy	2 rows	Polyester Thermoplastic
EDAC Inc. 345-108-541-258	Female	Dual Edge Non Specified	Dual	0.1 in	Card Guides	Gold	54 108	Cantilever		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Wire Wrap	0.054 in	0.07 in	-40 °C	105 °C	Green	Through Hole	2	Copper Alloy	2 rows	Polyester Thermoplastic
EDAC Inc. 345-108-500-512	Female	Dual Edge Non Specified	Dual	0.1 in		Gold	54 108	Cantilever	0.128 in	Side Mount Opening Unthreaded	10 Ąin	Solder Eyelet(s)	0.054 in	0.07 in	-40 °C	105 °C	Green	Through Hole	2	Copper Alloy	2 rows	Polyester Thermoplastic
EDAC Inc. 345-108-542-512	Female	Dual Edge Non Specified	Dual	0.1 in		Gold	54 108	Cantilever	0.128 in	Side Mount Opening Unthreaded	10 Ąin	Wire Wrap	0.054 in	0.07 in	-40 °C	105 °C	Green	Through Hole	2	Copper Alloy	2 rows	Polyester Thermoplastic
EDAC Inc. 345-108-521-802	Female	Dual Edge Non Specified	Dual	0.1 in		Gold	54 108	Cantilever	0.128 in	Top Mount Opening Unthreaded	10 Ąin	Solder	0.054 in	0.07 in	-40 °C	105 °C	Green	Through Hole	2	Copper Alloy	2 rows	Polyester Thermoplastic
EDAC Inc. 345-108-521-588	Female	Dual Edge Non Specified	Dual	0.1 in	Card Guides	Gold	54 108	Cantilever		4-40 Threaded Insert Top Mount Opening	10 Ąin	Solder	0.054 in	0.07 in	-40 °C	105 °C	Green	Through Hole	2	Copper Alloy	2 rows	Polyester Thermoplastic
EDAC Inc. 345-108-524-207	Female	Dual Edge Non Specified	Dual	0.1 in		Gold	54 108	Cantilever		Flush Mount M3 Threaded Insert Top Opening	10 Ąin	Solder	0.054 in	0.07 in	-40 °C	105 °C	Green	Through Hole	2	Copper Alloy	2 rows	Polyester Thermoplastic
EDAC Inc. 345-108-556-208	Female	Dual Edge Non Specified	Dual	0.1 in	Card Extender	Gold	54 108	Cantilever		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Solder	0.054 in	0.07 in	-40 °C	105 °C	Green	Board Edge Straddle Mount	2	Copper Alloy	2 rows	Polyester Thermoplastic
EDAC Inc. 345-108-520-212	Female	Dual Edge Non Specified	Dual	0.1 in		Gold	54 108	Cantilever	0.128 in	Flush Mount Side Opening Unthreaded	10 Ąin	Solder	0.054 in	0.07 in	-40 °C	105 °C	Green	Through Hole	2	Copper Alloy	2 rows	Polyester Thermoplastic
