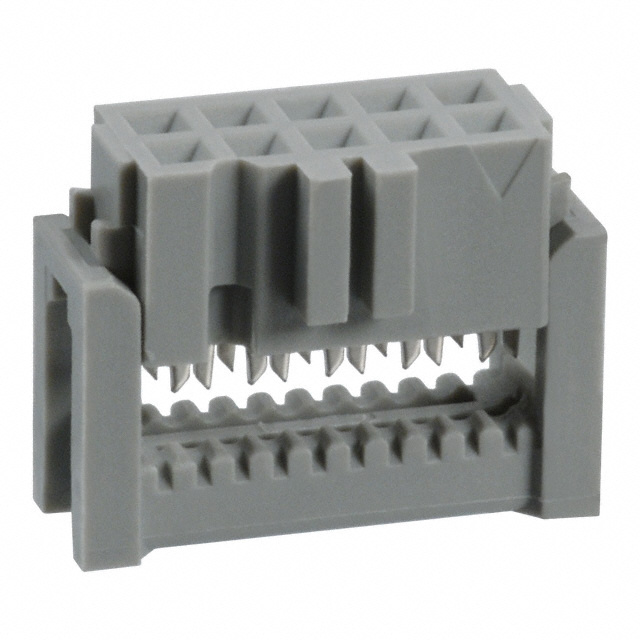

89110-0101

Active

3M (TC)

CONN RCPT 10P IDC 26-28AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 10P IDC 26-28AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Color	Pitch [x]	Pitch [x]	Cable Termination	Row Spacing [x]	Row Spacing	Number of Rows	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Contact Type	Mounting Type	Features	Number of Positions
3M (TC) 89110-0101	Gray	2.54 mm	0.1 in	IDC	0.1 in	2.54 mm	2	Gold	Receptacle	0.76 Ám	30 Áin	Ribbon Cable	Female Socket	Free Hanging (In-Line)	Feed Through Polarizing Key	10
3M (TC) 89110-0111	Gray	2.54 mm	0.1 in	IDC	0.1 in	2.54 mm	2	Gold	Receptacle	0.76 Ám	30 Áin	Ribbon Cable	Female Socket	Free Hanging (In-Line)	Feed Through Polarizing Key	10
3M (TC) 89110-0001HA	Gray	2.54 mm	0.1 in	IDC	0.1 in	2.54 mm	2	Gold	Receptacle	0.76 Ám	30 Áin	Ribbon Cable	Female Socket	Free Hanging (In-Line)	Feed Through	10
3M (TC) 89110-0011	Gray	2.54 mm	0.1 in	IDC	0.1 in	2.54 mm	2	Gold	Receptacle	0.76 Ám	30 Áin	Ribbon Cable	Female Socket	Free Hanging (In-Line)	Feed Through	10
